Description

THE ULTIMATE WIRELESS SCANNER. NO LAPTOP. NO CABLES. NO LIMITS.

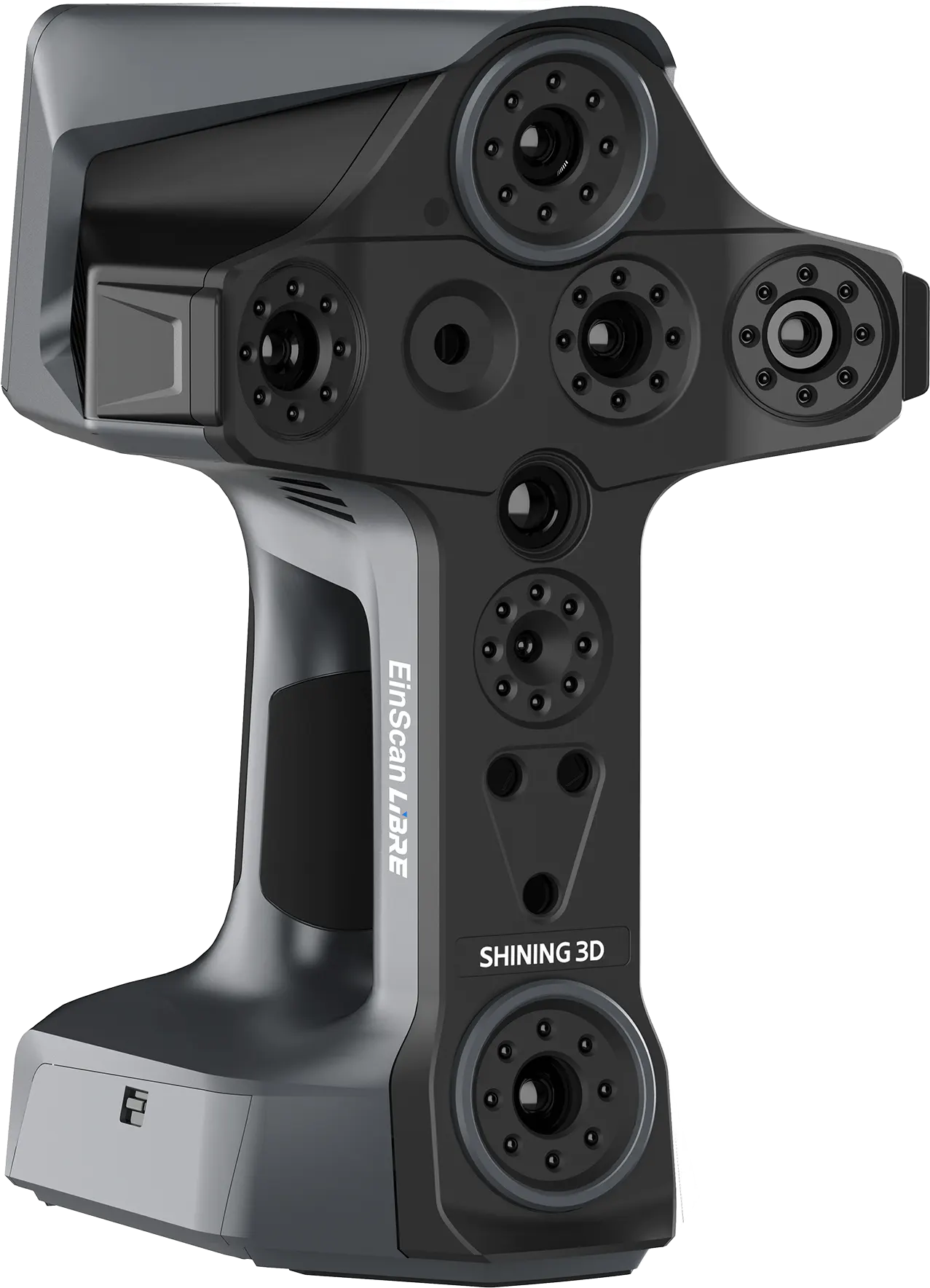

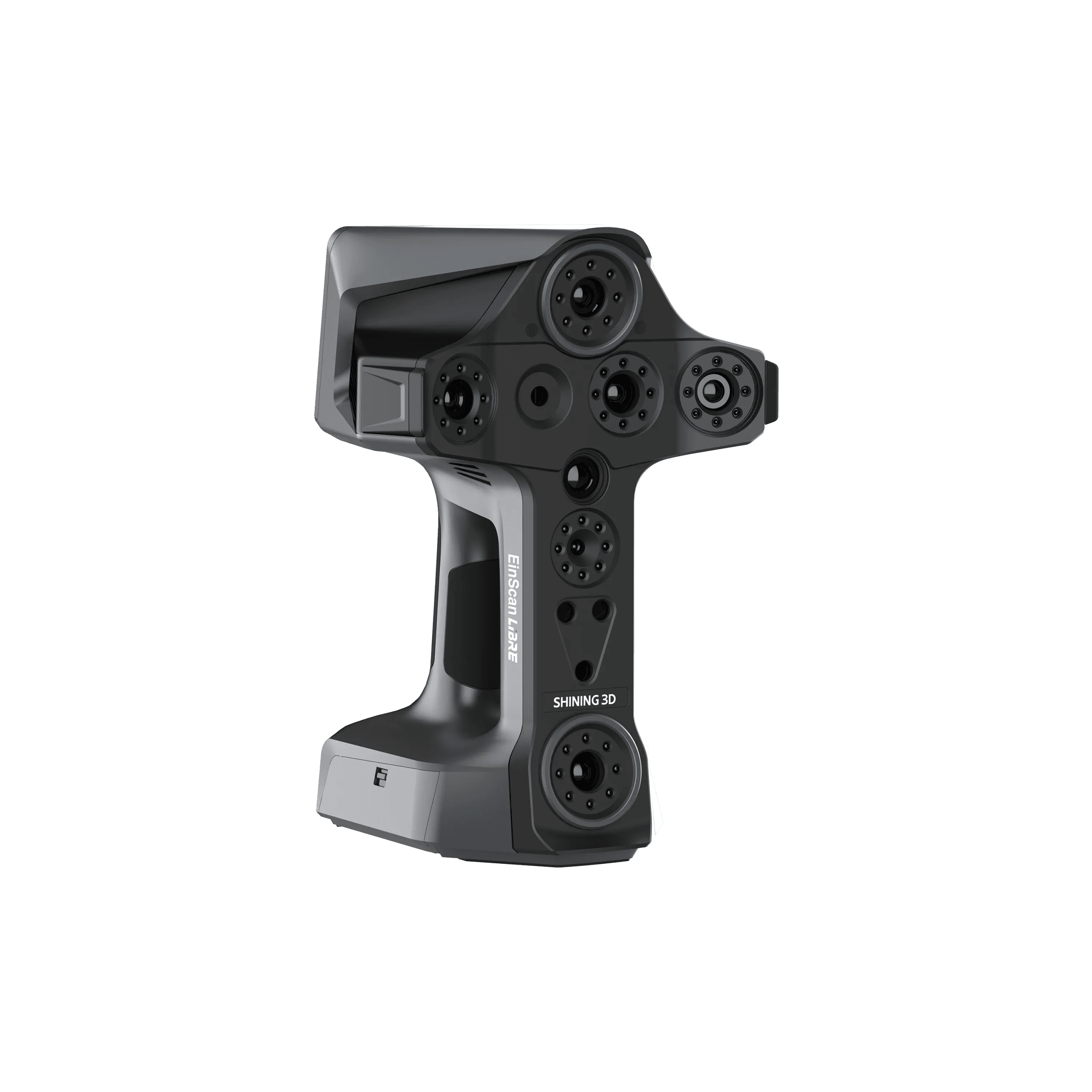

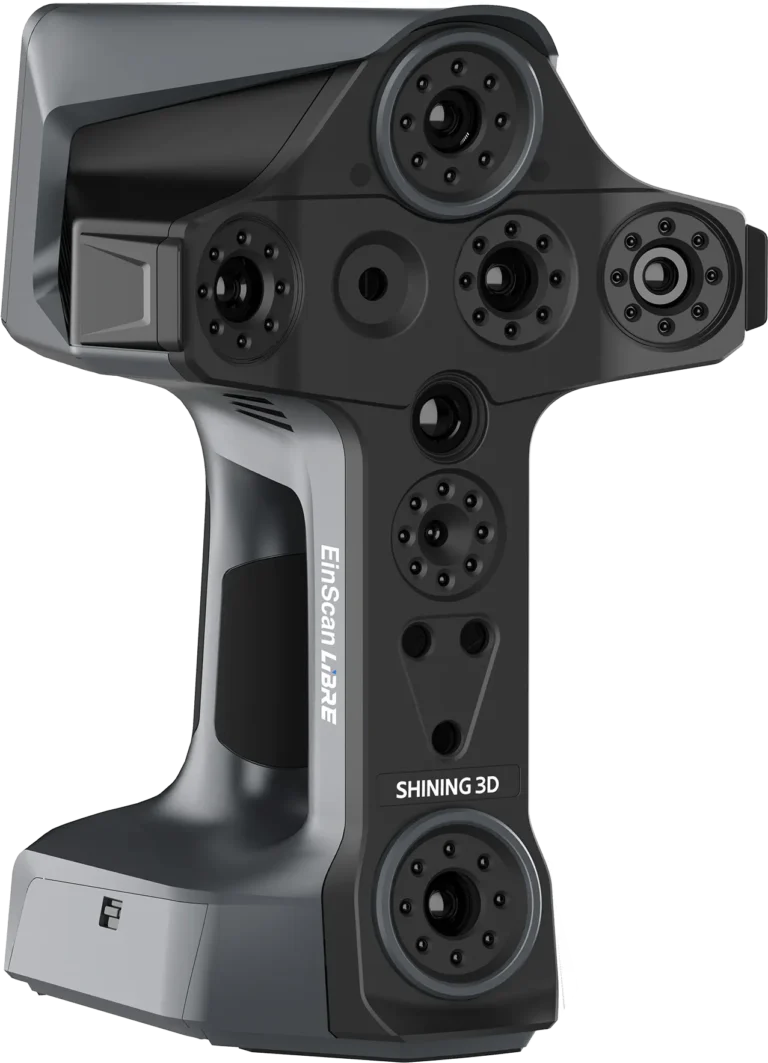

The Shining 3D EinScan Libre is the most advanced all-in-one 3D scanner in the EinScan lineup — and the world’s first standalone wireless scanner to support texture alignment during scanning. With a built-in NVIDIA Jetson Orin NX processor, 1TB SSD, 5.5″ OLED touchscreen, and hot-swappable batteries, the Libre lets you scan, process, edit, and export complete 3D data entirely on the device, anywhere in the world. From a 5cm part to a 10-meter machine, from matte plastic to highly reflective metal, in a workshop or outdoors in direct sunlight — the Libre handles it all.

As an authorized Shining 3D dealer via Vision Miner, Ripperden Resources provides local support and can assist with setup, training, and real-world scanning guidance alongside Vision Miner’s US-based team.

THREE SCAN MODES — ONE SCANNER FOR EVERY SCENARIO

• Laser HD Mode (101 Blue Laser Lines): Markerless high-detail scanning with texture alignment — 0.05mm point distance, 120 FPS, 1,600,000 pts/sec; ideal for objects under 1×1×1m requiring precision detail and color
• IR Rapid Mode (Infrared VCSEL): Marker-free, eye-safe, wide-area scanning — 20 FPS, 1,200,000 pts/sec, FOV 983×979mm, working distance up to 1.5m; ideal for large objects and outdoor use
• IR Adaptive Mode (38 IR Laser Lines): Optimized for reflective and black surfaces — volumetric accuracy 0.04 + 0.06mm/m; requires markers for tracking on challenging materials
• Scan objects from 5cm to over 10m — seamlessly merge scans across modes in a single project
• First standalone scanner to support texture alignment — improves accuracy on complex, colorful, or metallic surfaces without markers

INDUSTRIAL-GRADE COMPUTING — BUILT IN, NO PC REQUIRED

• NVIDIA Jetson Orin NX 16GB — 8-core CPU + Ampere GPU with 1,024 CUDA cores; processes up to 30–40 million points per scan session
• 1TB SSD onboard — handles large projects and high-resolution data with no storage anxiety

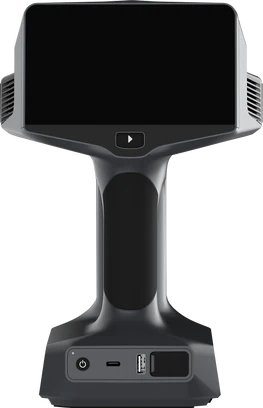

• 5.5″ OLED touchscreen — capture, view, edit, and manage scans directly on the device
• One-click mesh generation — complete scan-to-mesh on device, no post-processing PC required
• Real-time data quality feedback — blue = adequate coverage; yellow = rescan needed; green = active scan zone
• Also supports EXScan Libre PC software (included) for multi-project management, resolution fusion, and advanced editing

TRULY WIRELESS — BUILT FOR THE FIELD

• Hot-swappable rechargeable batteries with charging dock — keep scanning while the spare charges; connect a 100W PD USB-C power bank for seamless battery swaps mid-scan
• Wi-Fi 6 + Gigabit Ethernet + USB-C — flexible data transfer and PC software sync options
• USB 3.0 Type-A port for direct USB flash drive connection and data sharing
• All three scan modes fully functional outdoors in direct sunlight
• Dimensions: 162×182×266mm / Weight: 1.8kg (with battery) — handheld for large-scale field work

48MP FULL-COLOR TEXTURE CAPTURE

• 48MP high-definition color camera — lifelike, photorealistic textures in all three scan modes
• Texture alignment in Laser HD mode — industry first; improves tracking on metallic, colorful, and feature-poor surfaces
• Multi-resolution fusion — combine scans from different modes and resolutions in one project

ENHANCED ACCURACY FOR LARGE OBJECT SCANNING

• Validated scale bar integration with photogrammetry — verifies markers in real time to improve volumetric accuracy on large objects
• Global marker scanning mode — first pass captures marker positions only (projectors off) for highest large-scale accuracy
• Hybrid alignment — freely combine feature, texture, and marker alignment in a single scan session
• Measurement functions: distance, surface area, volume calculations built into on-device workflow

SOFTWARE INCLUDED — ON-DEVICE AND PC

• On-device workflow: Full scan, mesh, edit, measure, and export directly on the Libre — no PC needed
• EXScan Libre (PC software, included): Multi-project management, resolution fusion, advanced mesh editing, customizable settings
• EXModel (available as bundle): One-click scan-to-CAD bridge — seamlessly import mesh data for reverse engineering and manufacturing
• Exports STL, OBJ, ASC, LAS — compatible with all major CAD, inspection, and design software

FULL TECHNICAL SPECIFICATIONS

APPLICATIONS

• Industrial Manufacturing: Large machinery, vehicles, molds, castings, equipment inspection — scan entire forklifts, engines, and production assets on-site without cables
• Automotive: Full vehicles, body panels, chassis, custom fabrication — scan cars outdoors in direct sunlight without setup limitations
• Reverse Engineering: High-accuracy part capture directly to CAD — SolidWorks, Fusion 360, Geomagic compatible
• Aerospace & Defense: Complex geometry, large structural components, jigs, and tooling with industrial-grade accuracy
• Art, Heritage & Archaeology: Sculptures, monuments, cultural artifacts — outdoor capture in any lighting condition with 48MP color
• Construction & Architecture: As-built documentation, site surveys, large structural captures
• Energy & Oil/Gas: Equipment inspection and documentation in field environments without laptop dependency
• Forensics & Investigation: On-site scene capture — wireless, no setup delays, full documentation in LAS format

WHY BUY THROUGH RIPPERDEN RESOURCES?

• ✓ Authorized Shining 3D dealer via Vision Miner — full factory warranty and US-based support
• ✓ Local Texas-based assistance for setup, training, and troubleshooting
• ✓ We offer 3D scanning services ourselves — real expertise, not just a reseller
• ✓ Vision Miner tests every scanner they sell and provides ongoing technical resources

Note: The EinScan Libre is a high-performance professional scanner. Contact us before ordering to discuss configuration options, confirm current availability and pricing, and request a formal quote. ExModel bundle and accessories available — ask us for details. Contact Ripperden Resources
