Description

HIGH DEFINITION. MULTI-FUNCTIONAL. THE PROFESSIONAL ALL-ROUNDER.

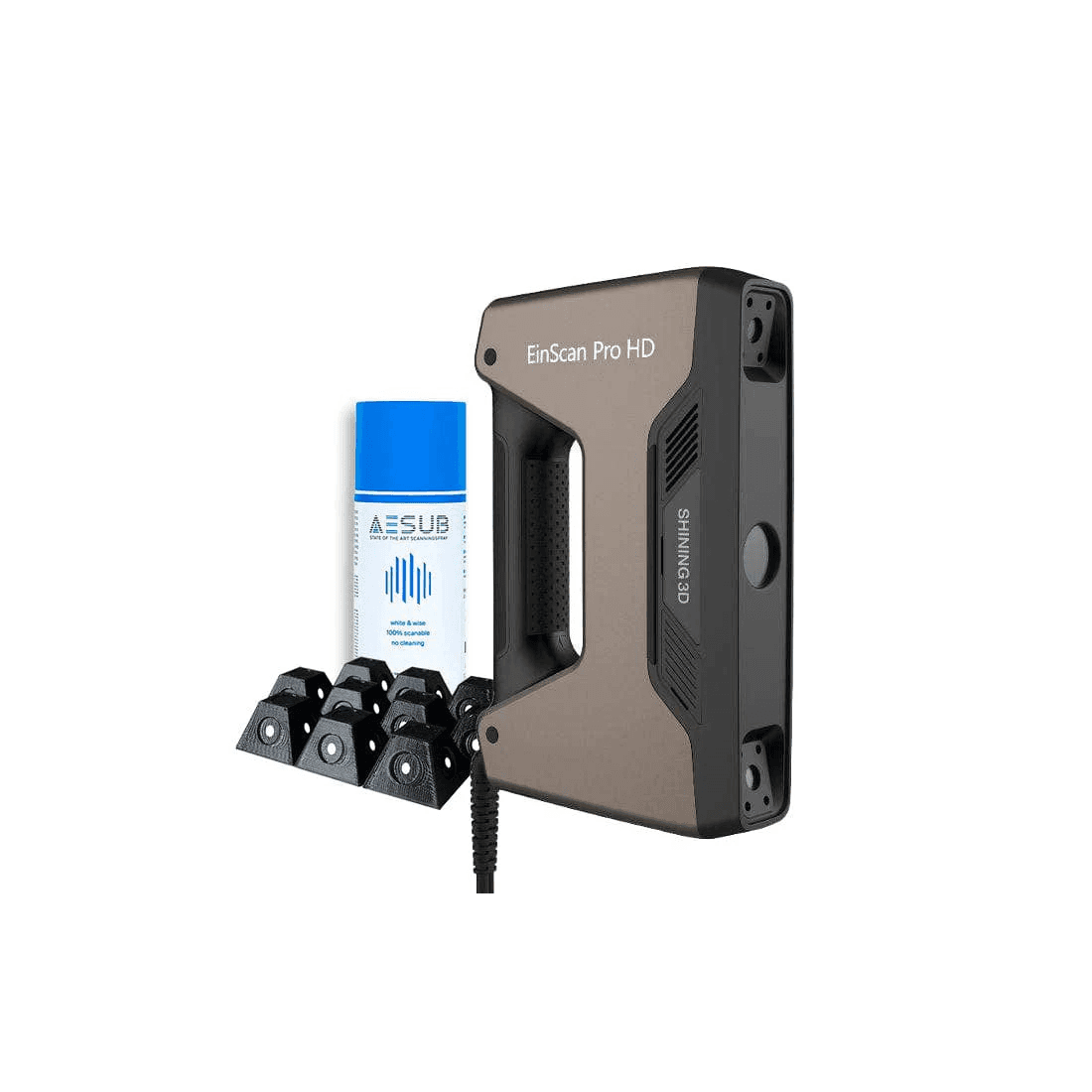

The Shining 3D EinScan Pro HD is a professional multi-functional 3D scanner that delivers desktop-quality accuracy in a handheld form factor. By bringing the stripe pattern scanning method — traditionally reserved for fixed scan stations — into handheld HD mode, the Pro HD achieves 0.04mm accuracy and 0.2mm resolution while you move freely around the object. Three distinct scan modes, a modular accessory system, and support for objects from screw-size to full vehicles make it the most versatile scanner in the EinScan lineup.

As an authorized Shining 3D dealer via Vision Miner, Ripperden Resources provides local support and can assist with setup, training, and real-world scanning guidance alongside Vision Miner’s US-based team.

THREE SCAN MODES — ONE SCANNER FOR EVERY JOB

• Fixed Scan Mode: Highest accuracy at 0.04mm — scanner and object are stationary; <0.5 sec per frame; ideal for small to medium precision parts with turntable or tripod (Industrial Pack required for turntable)
• Handheld HD Mode: Stripe pattern scanning while moving freely — 3,000,000 pts/sec at 10 FPS; 0.045mm+0.3mm/m volumetric accuracy; resolution as good as fixed scan
• Handheld Rapid Mode: Fastest handheld capture at 30 FPS, 1,500,000 pts/sec — best for large objects requiring maximum speed; speckle pattern for wide-area coverage
• Stripe pattern in Handheld HD mode is a breakthrough — previously only available in fixed scan stations; delivers resolution and accuracy in handheld mode that competitors cannot match

MODULAR DESIGN — EXPAND FOR MORE APPLICATIONS

• Color Pack (optional add-on): Adds full-color texture capture and texture-based alignment in Handheld Rapid mode — scan without markers using rich color tracking
• Industrial Pack (optional add-on): Adds automated turntable, tripod, and coded target alignment for Fixed Scan mode — streamlines high-throughput small part scanning
• Multiple alignment methods: Feature, Marker, Turntable Coded Targets, Manual, Texture (Color Pack required for texture alignment)
• Also available as the Reverse Engineering Design Bundle — includes Geomagic Design X and additional software; contact us for pricing

ENHANCED DARK & METALLIC SURFACE CAPABILITY

• New lighting projection hardware and updated algorithms significantly expand capability on dark, black, and casting metal surfaces
• Reduces need for scanning spray on challenging materials vs. previous Pro series generations
• Spray powder still recommended for highly reflective, transparent, or very dark objects
• Handles complex geometry, automotive parts, industrial castings, and intricate surface detail

SOFTWARE INCLUDED — NO SUBSCRIPTION

• EXScan Pro (included): Professional scanning and data processing software — intuitive UI, scan and mesh editing tools, high-quality 3D model output
• Geomagic Essentials (included): Entry-level CAD design tool for converting scan data to editable 3D models
• Factory-tested accuracy per VDI/VDE 2634 standards — internationally recognized metrology certification
• Official scanner for WorldSkills Mechanical Engineering CAD competitions — trusted at the highest level
• Exports OBJ, STL, ASC, PLY, P3 — compatible with SolidWorks, Fusion 360, Geomagic, and all major CAD tools
• No subscription fees — scan as much as you want

FULL TECHNICAL SPECIFICATIONS

APPLICATIONS

• Reverse Engineering: Scan complex parts directly to CAD — SolidWorks, Fusion 360, Geomagic compatible; Geomagic Essentials included
• Industrial Manufacturing: Precision part inspection, mold scanning, jigs, fixtures, and tooling — 0.04mm fixed accuracy meets demanding manufacturing tolerances
• Automotive: Body panels, bumpers, engine components, custom fabrication — both handheld and fixed modes for large and small parts

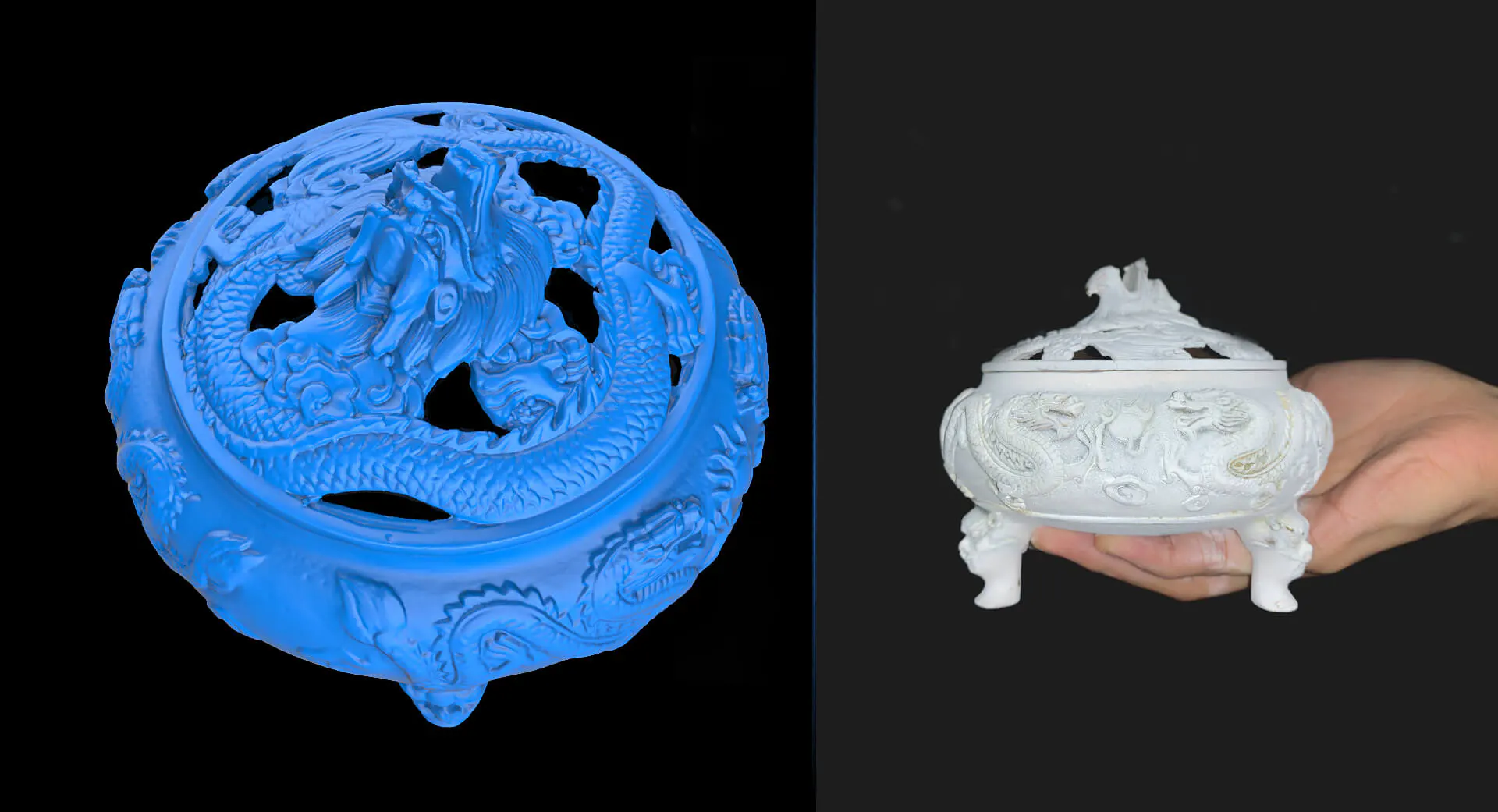

• Art & Cultural Heritage: Sculptures, artifacts, and heritage documentation — high-resolution capture with optional full-color texture

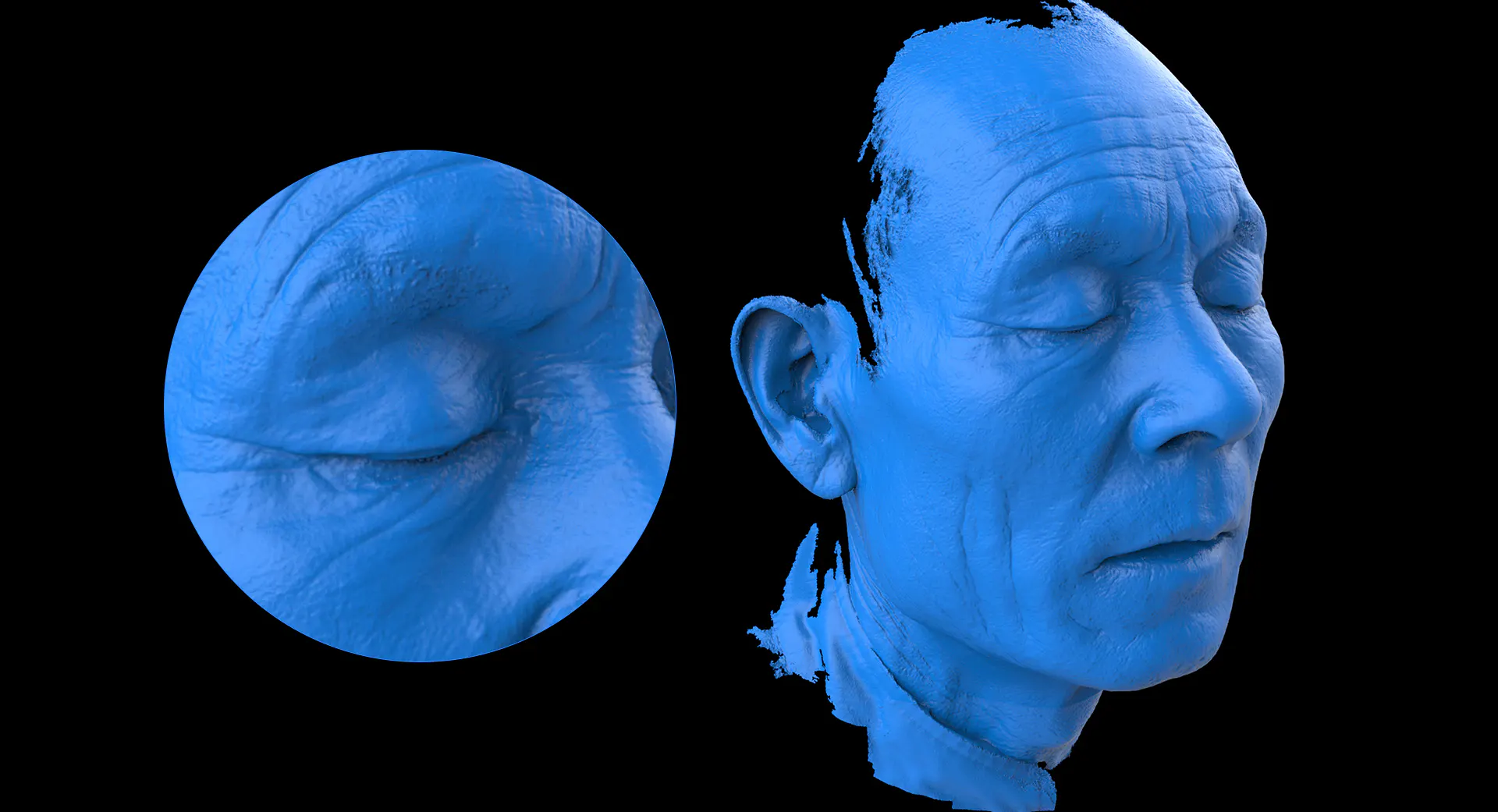

• Healthcare & Medical: Body part scanning, prosthetics, orthotics, and medical device modeling
• Product Design & Prototyping: Rapid physical-to-digital conversion for design iteration, fit checking, and product development
• R&D & Education: Official scanner for WorldSkills Mechanical Engineering CAD competitions — trusted in professional training and research

WHY BUY THROUGH RIPPERDEN RESOURCES?

• ✓ Authorized Shining 3D dealer via Vision Miner — full factory warranty and US-based support
• ✓ Local Texas-based assistance for setup, training, and troubleshooting
• ✓ We offer 3D scanning services ourselves — real expertise, not just a reseller
• ✓ Vision Miner tests every scanner they sell and provides ongoing technical resources

Note: The EinScan Pro HD requires a PC connection via USB 3.0 and an NVIDIA GPU (AMD graphics cards not supported). Color Pack and Industrial Pack are sold separately — contact us for add-on and bundle pricing. Contact us before ordering to confirm current availability and shipping cost. Contact Ripperden Resources
