Description

ALL-IN-ONE WIRELESS SCANNING. PRO-LEVEL PERFORMANCE. ANYWHERE.

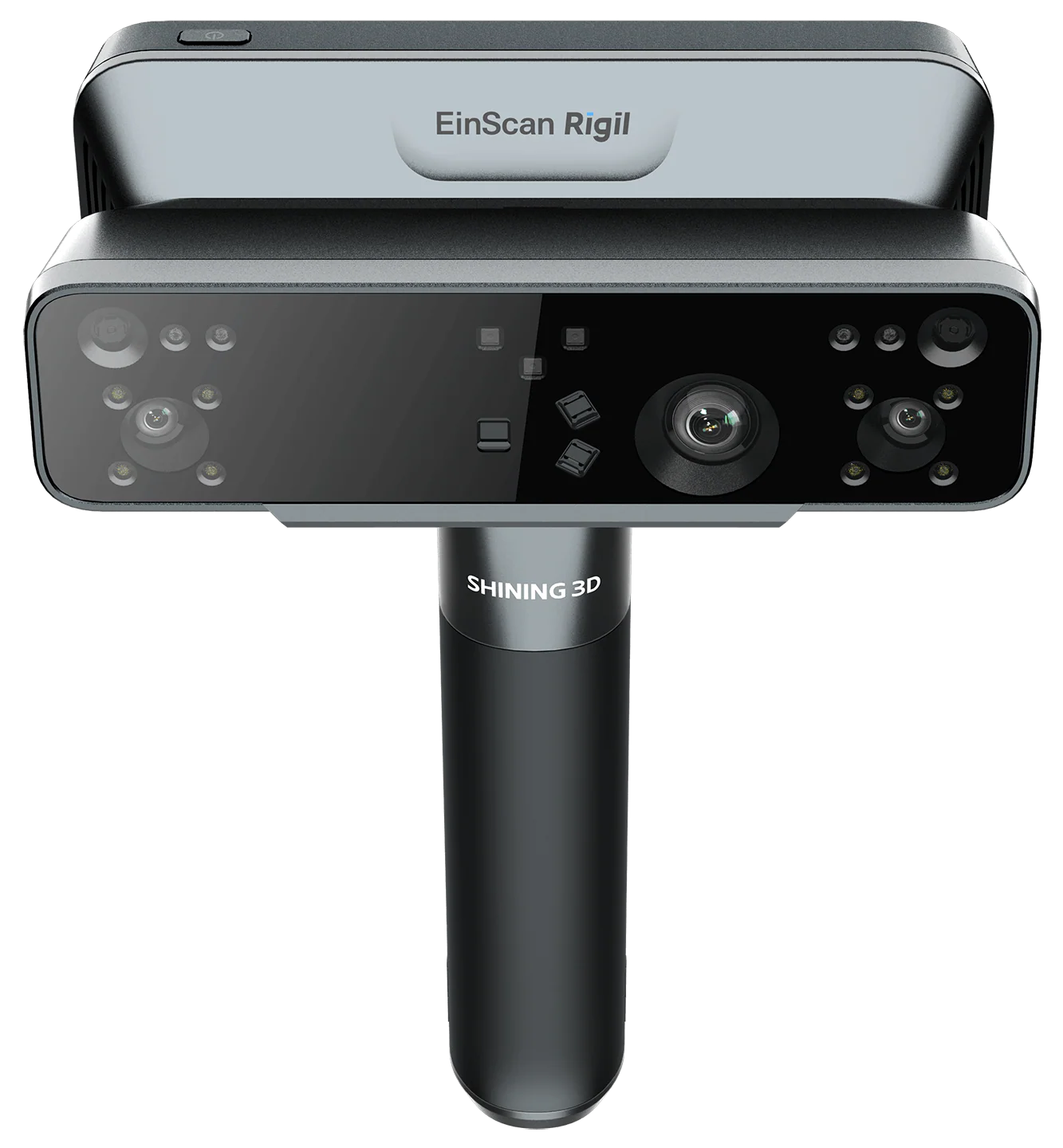

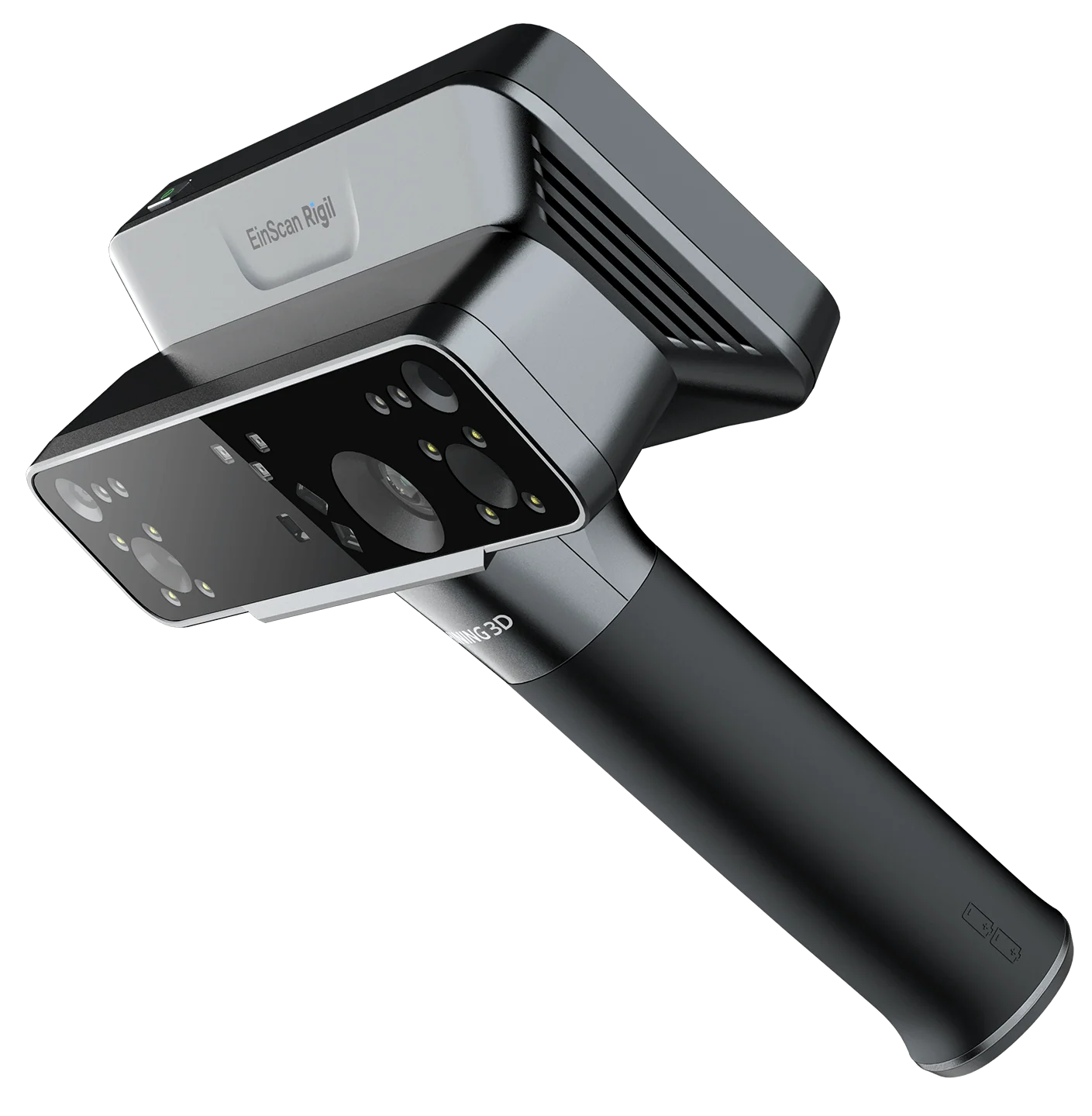

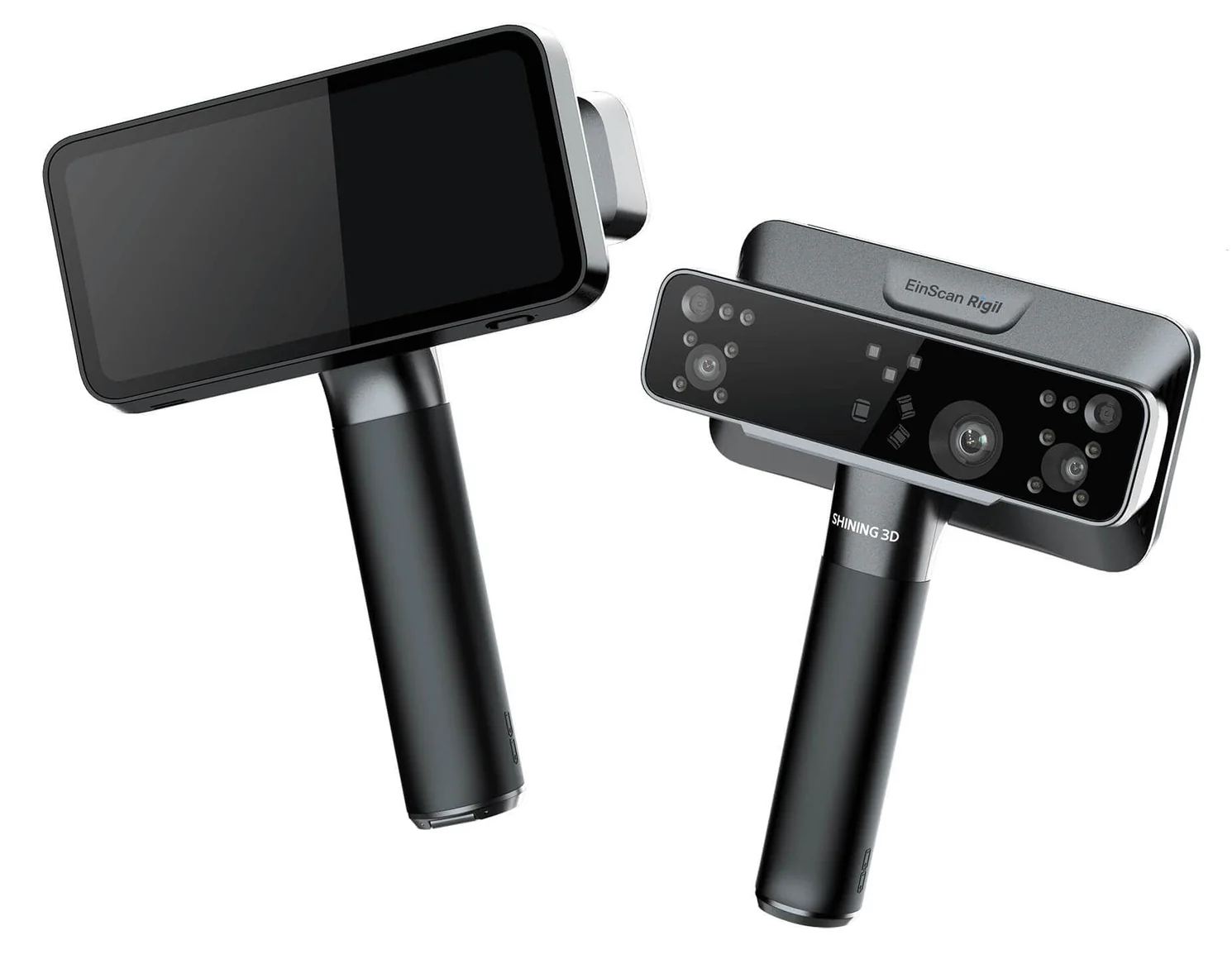

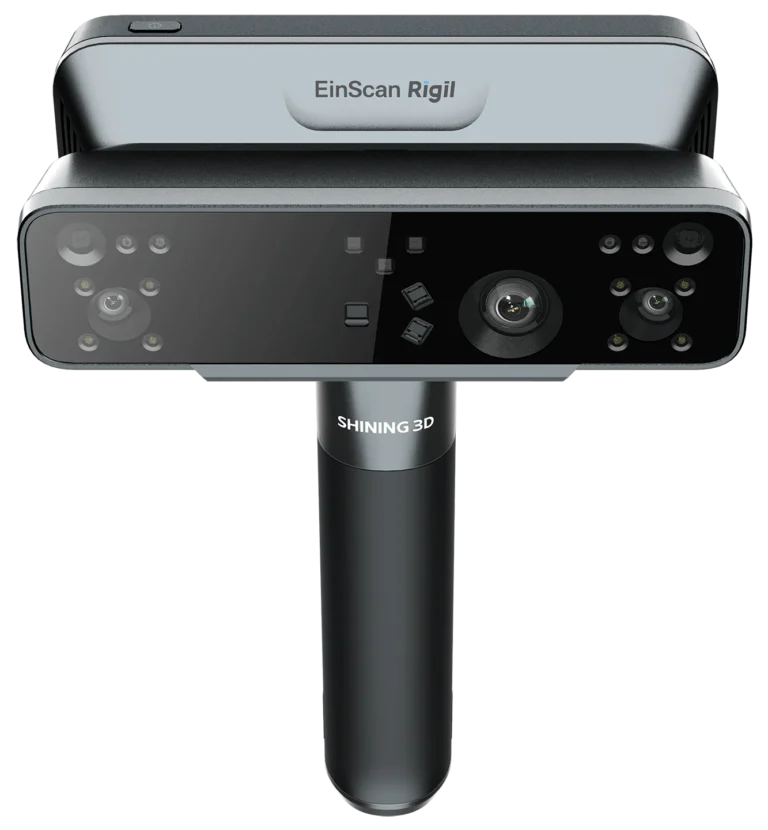

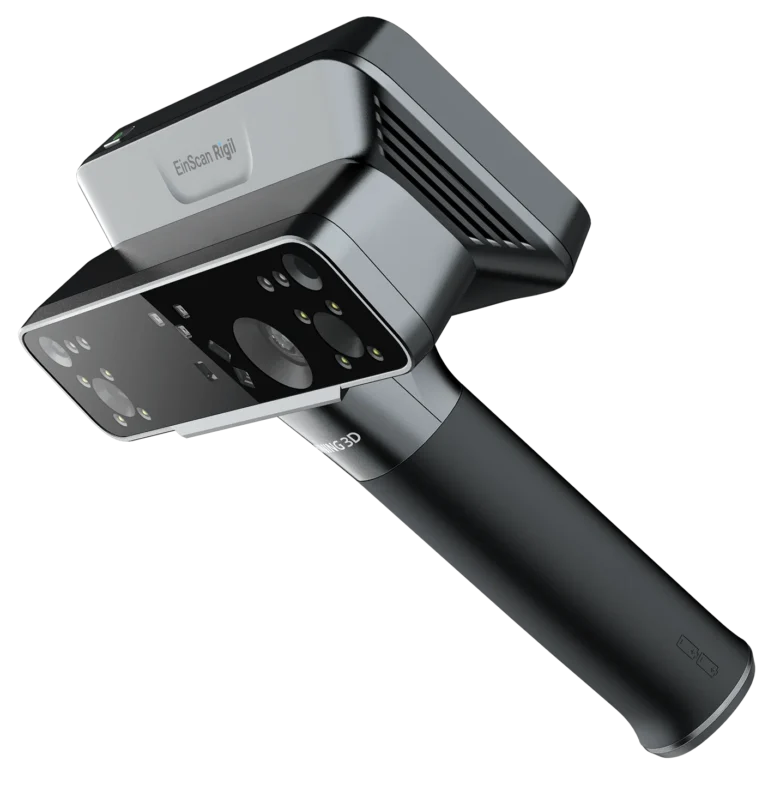

The Shining 3D EinScan Rigil is the world’s first tri-mode laser 3D scanner — combining crossed blue laser speed, parallel blue laser detail, and infrared VCSEL flexibility, all inside a powerful, portable, wireless unit. No spray. No cables. No compromise.

As an authorized Shining 3D dealer via Vision Miner, Ripperden Resources provides local support and can assist with setup, training, and real-world scanning guidance alongside Vision Miner’s US-based team.

Limited Time Offer: Purchase includes a FREE Pro Accessory Kit (6mm Magnetic Marker Balls, Magnetic Markers, Marker Cards, 300mm Turntable, Fixture Columns) + ExModel Pro 2-month Trial + FREE AESUB Scanning Spray & Magnetic Ball Markers. Contact us to confirm current promotion status.

TRI-MODE HYBRID SCANNING — THREE MODES, ONE SCANNER

Switch seamlessly between all three modes mid-scan and merge data for speed and detail in one project:

• Crossed Blue Laser (19+19 lines): High-speed scanning for full coverage — best for large surfaces and fast acquisition
• Parallel Blue Laser (7 lines): High-detail mode for fine geometry, sharp edges, and complex mechanical parts — 0.04mm accuracy
• Infrared VCSEL: Marker-free scanning for medium to large objects — up to 1.6M pts/sec with wide coverage
• Unique Laser+IR hybrid tracking algorithm: marker-free blue laser scanning with better quality than IR alone

NO SPRAY. NO MARKERS. NO PROBLEM.

• Captures black, shiny, and metallic surfaces without scanning spray
• Works in direct sunlight outdoors — environmental light adaptability built in
• Marker-free scanning available in all modes including blue laser
• Handles complex geometry, carbon fiber, polished metal, and dark plastics

FULLY WIRELESS — BUILT-IN COMPUTING POWER

• Built-in processing unit: 32GB DDR5 RAM, 1TB SSD — no tethered computer required

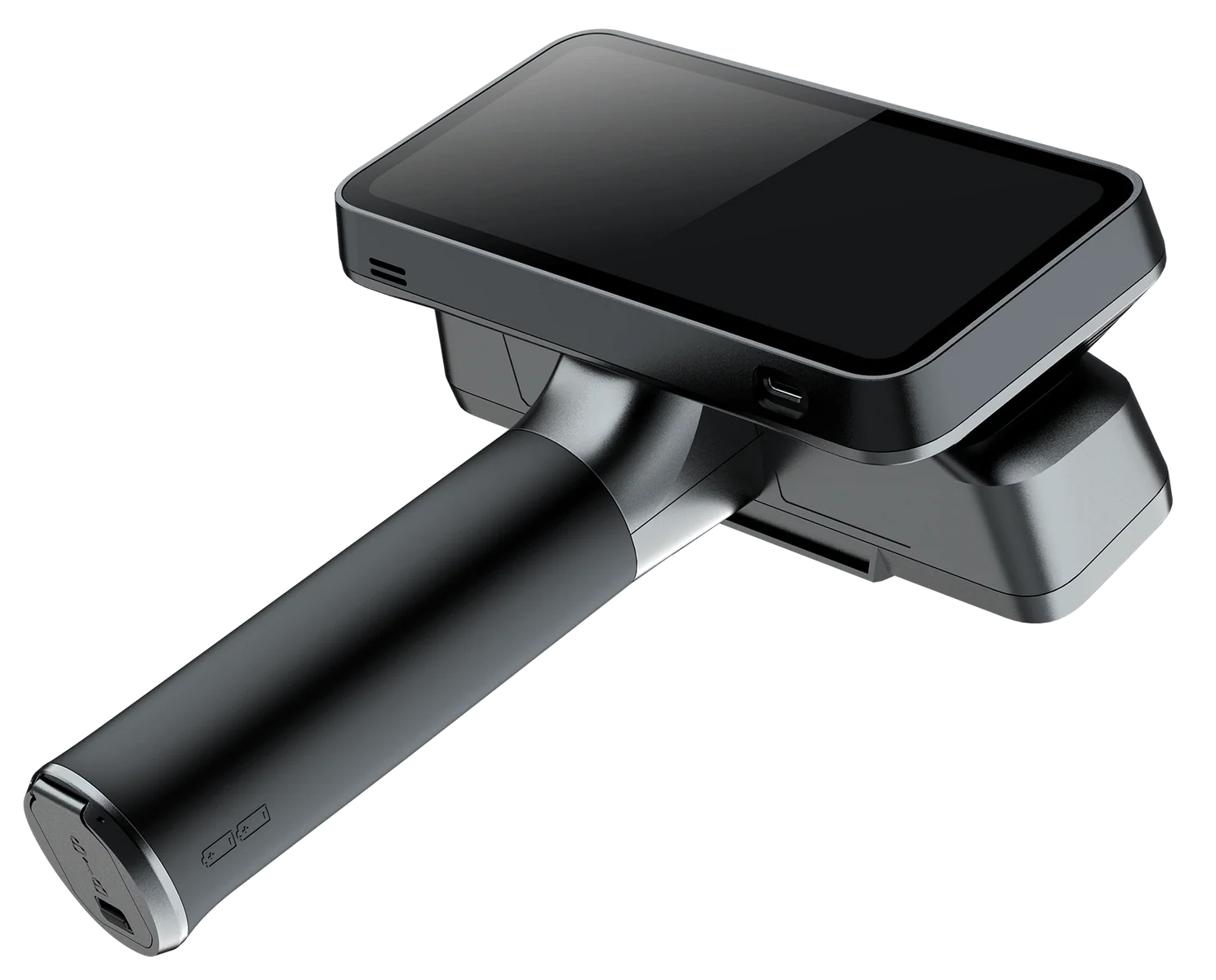

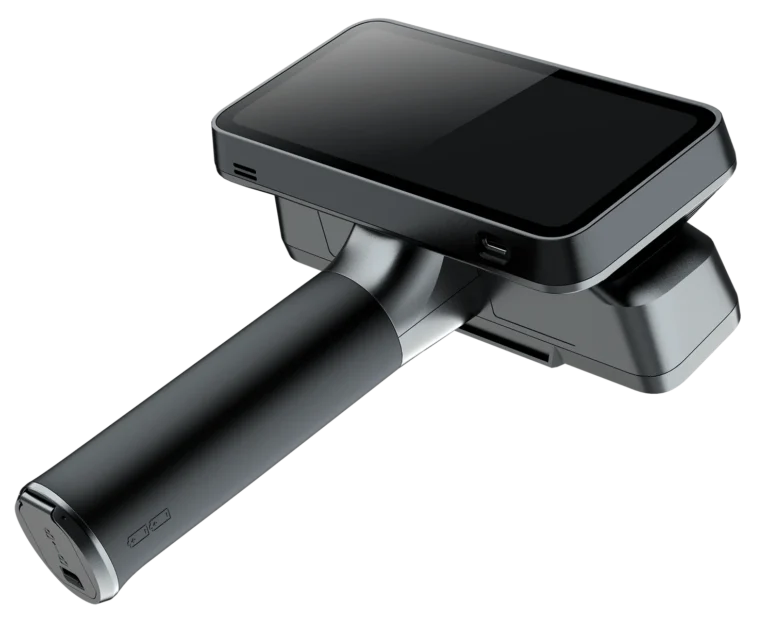

• 6.4″ 2K AMOLED touchscreen — calibrate, scan, edit, and export all on the device
• Dual hot-swappable batteries — scan continuously without stopping
• Wi-Fi 6 connectivity for wireless PC mode
• USB-C wired connection available for maximum processing speed on large projects

FULL-COLOR TEXTURE CAPTURE

• 5MP high-definition color camera captures photorealistic textures in all modes
• Auto brightness and texture alignment — streamlined workflow built in
• Ideal for product design, heritage documentation, CGI/VFX, and character scanning

SOFTWARE INCLUDED — NO SUBSCRIPTION

• EinScan Rigil App (onboard): Full scanning workflow on device — calibration, scanning, mesh editing, export
• EXScan Rigil (PC software): Advanced post-processing, mesh editing, cutting plane, mirror, flip normal, auto noise removal
• Exports STL, OBJ, ASC, PLY — compatible with all major CAD and design software
• No subscription fees — scan as much as you want

FULL TECHNICAL SPECIFICATIONS

APPLICATIONS

• Automotive & Racing: Body panels, custom parts, aftermarket modification, before/after dimensional comparison
• Reverse Engineering: Scan parts directly to CAD — SolidWorks, Fusion 360, CATIA compatible
• Industrial Manufacturing: Molds, castings, tooling inspection, quality control measurement
• Aerospace & Defense: Complex geometry, jigs, fixtures, structural components
• Art, Design & Heritage: Sculptures, cultural artifacts, full-color archiving
• Medical: Prosthetics, orthotics, custom anatomical modeling
• R&D & Education: Advanced scanning research and engineering curriculum

WHY BUY THROUGH RIPPERDEN RESOURCES?

• ✓ Authorized Shining 3D dealer via Vision Miner — full factory warranty and US-based support
• ✓ Local Texas-based assistance for setup, training, and troubleshooting
• ✓ We offer 3D scanning services ourselves — real expertise, not just a reseller
• ✓ Vision Miner tests every scanner they sell and provides ongoing technical resources

Note: Contact us before ordering to confirm current availability, shipping cost, and active promotional offers. Contact Ripperden Resources
