PROFESSIONAL DESKTOP 3D SCANNING. ONE CLICK. 45 SECONDS.

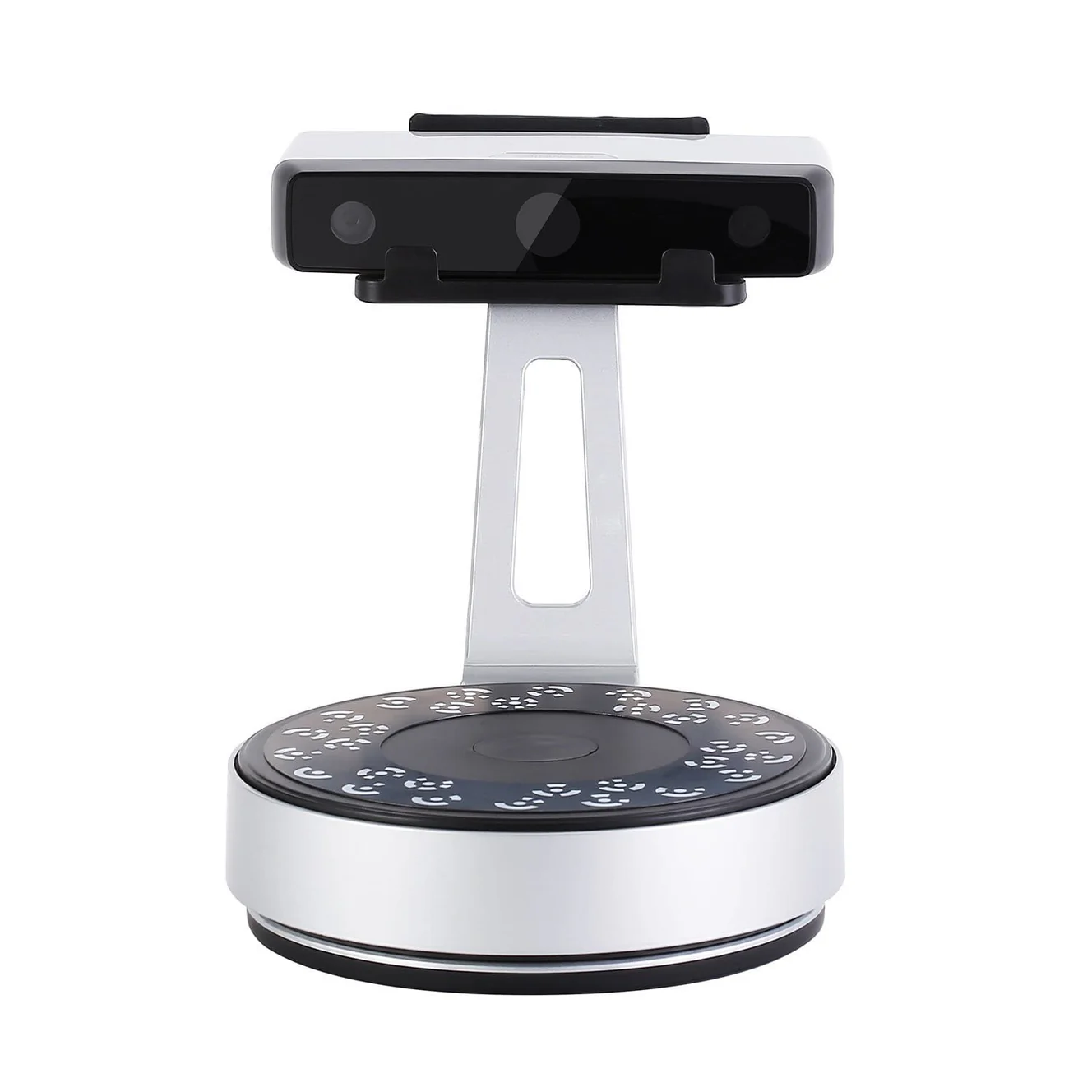

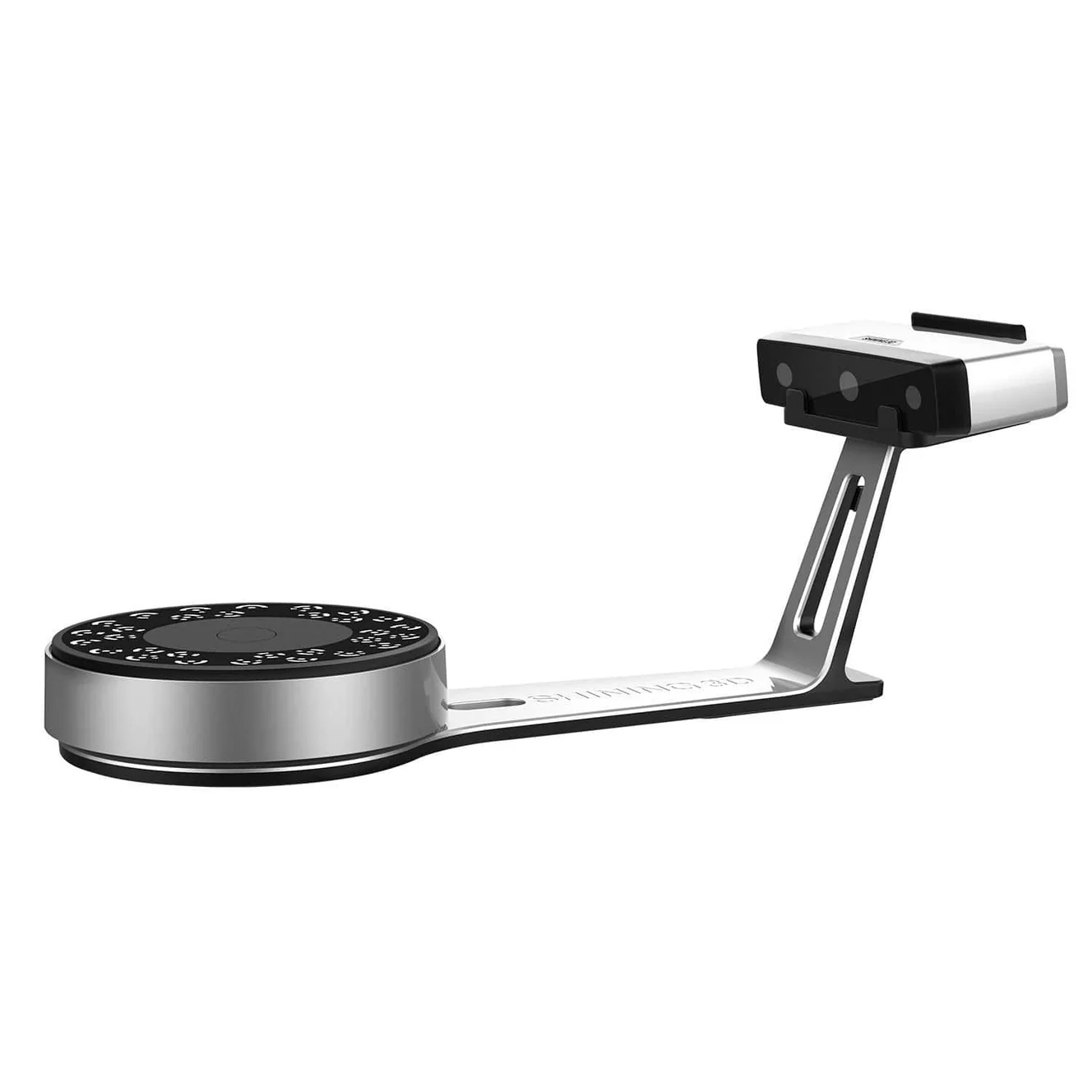

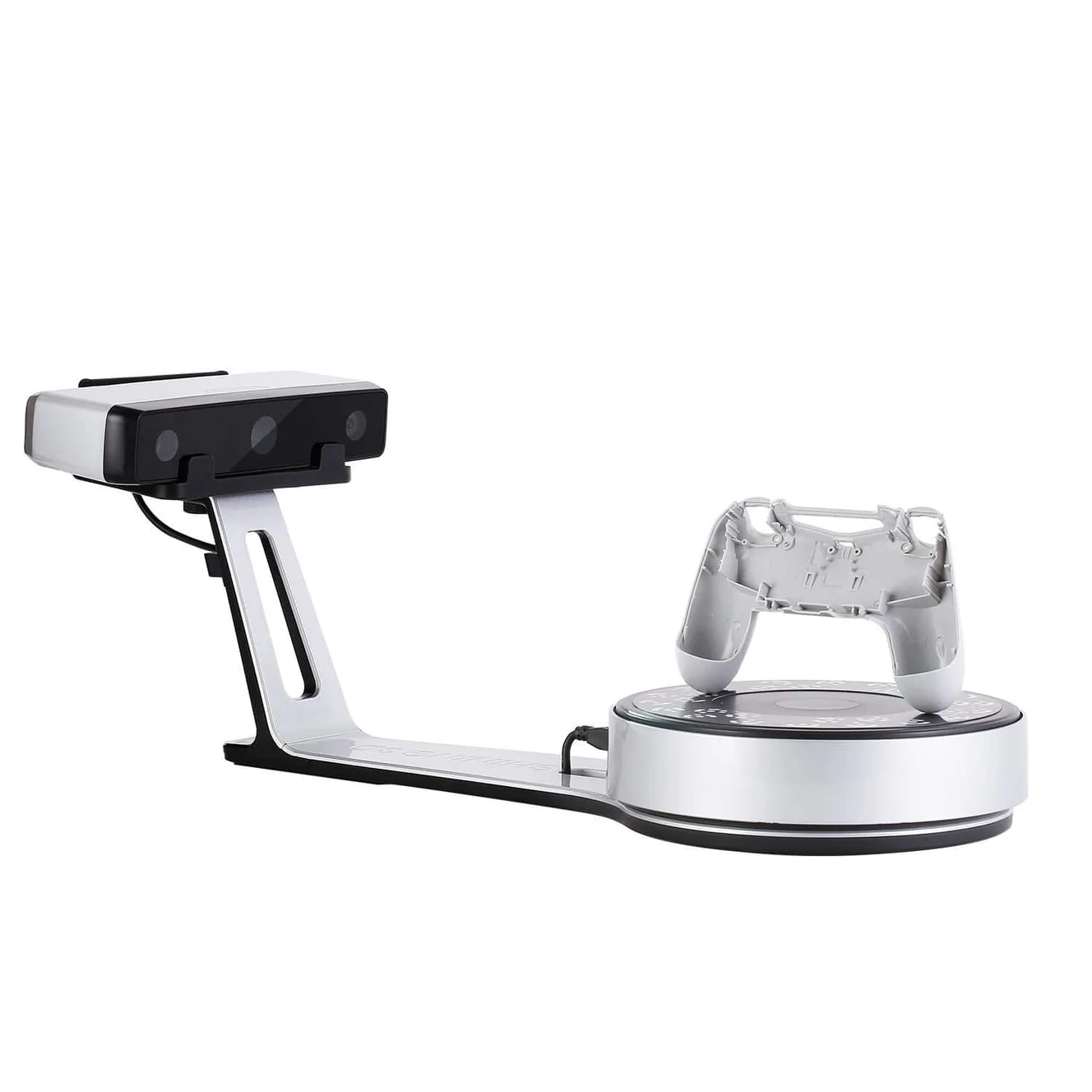

The Shining 3D EinScan SP v2 is a professional desktop structured light 3D scanner designed for engineers, designers, and educators who need fast, accurate, repeatable scans of small to medium-size objects. Place your object on the included automated turntable, press scan, and get a complete 360° 3D model in under 45 seconds — with 0.05mm accuracy and full-color texture. No complex setup, no markers required for Auto Scan mode, and no ongoing software fees.

As an authorized Shining 3D dealer via Vision Miner, Ripperden Resources provides local support and can assist with setup, training, and real-world scanning guidance alongside Vision Miner’s US-based team.

TWO SCAN MODES — TURNTABLE AND FIXED

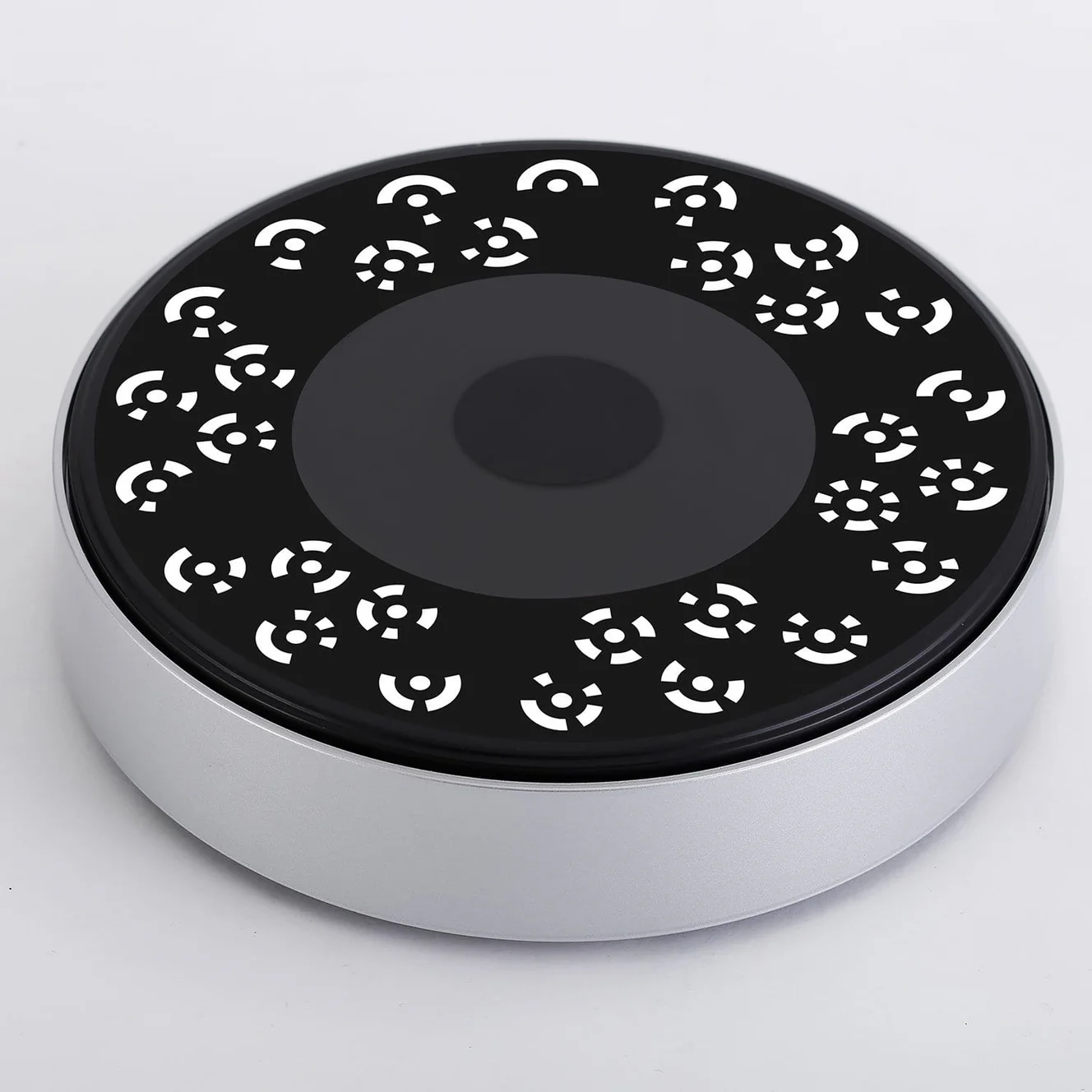

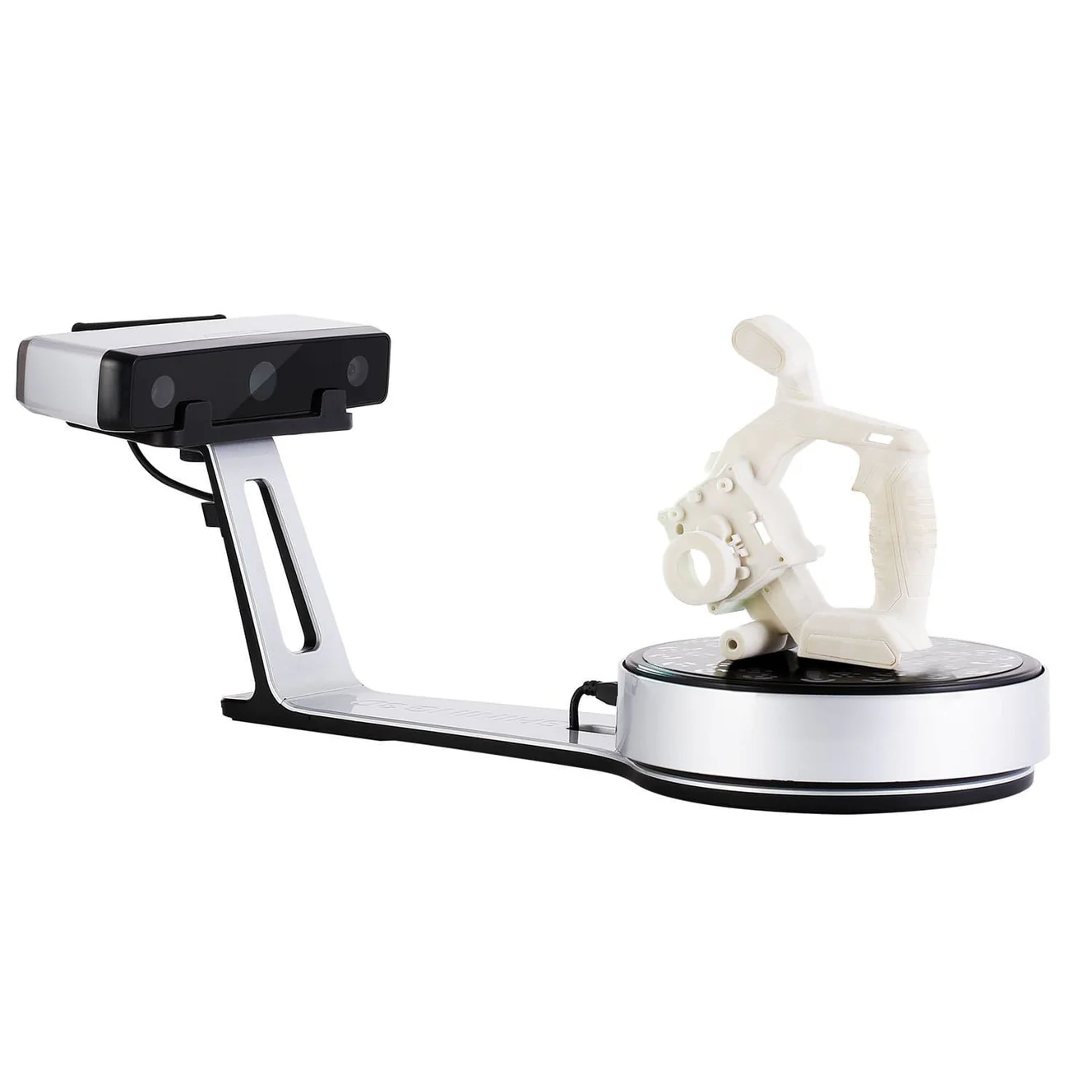

• Auto Scan Mode (Turntable): Place object on the motorized turntable — scanner automatically captures a full 360° in <45 seconds; objects up to 200×200×200mm; ideal for high-throughput small part scanning

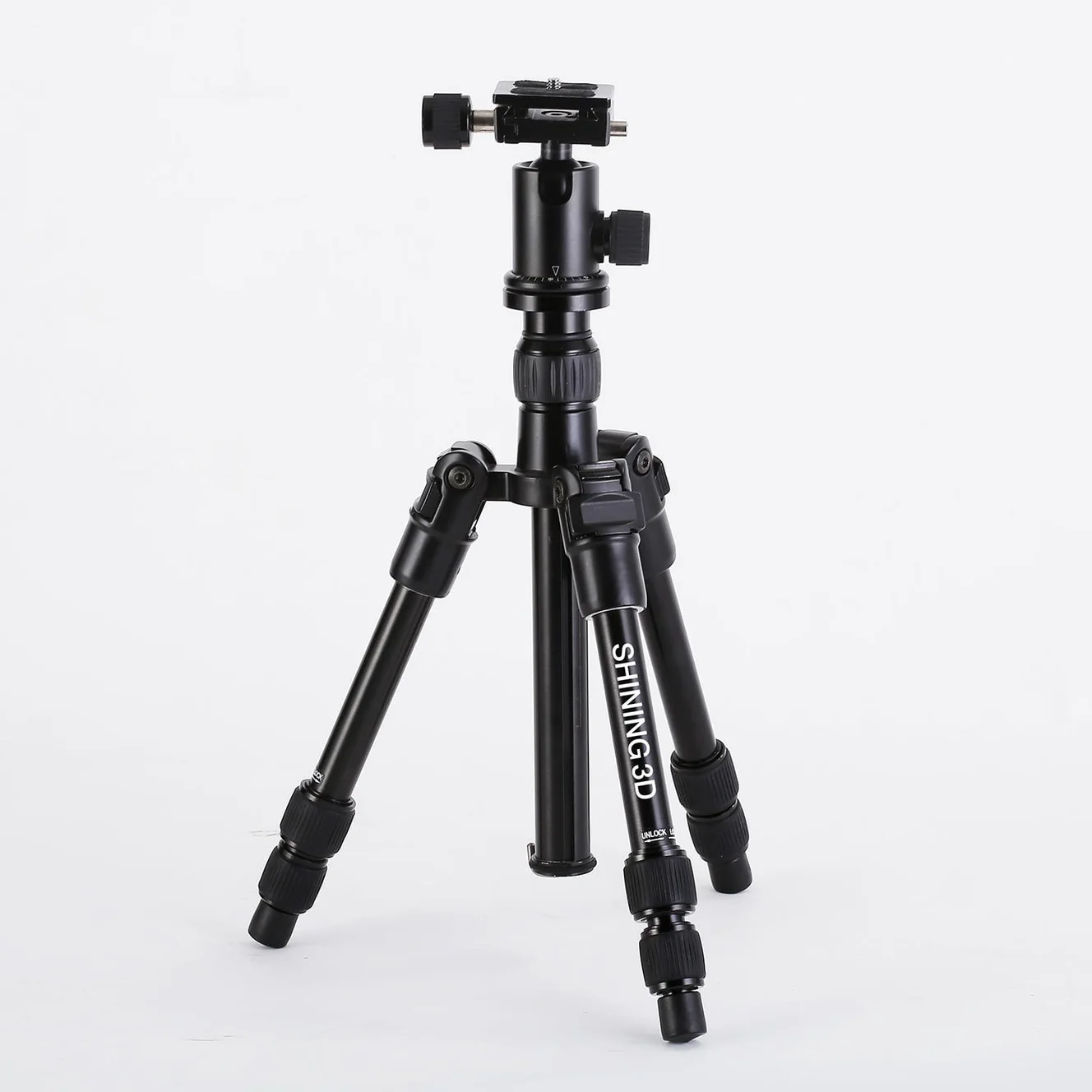

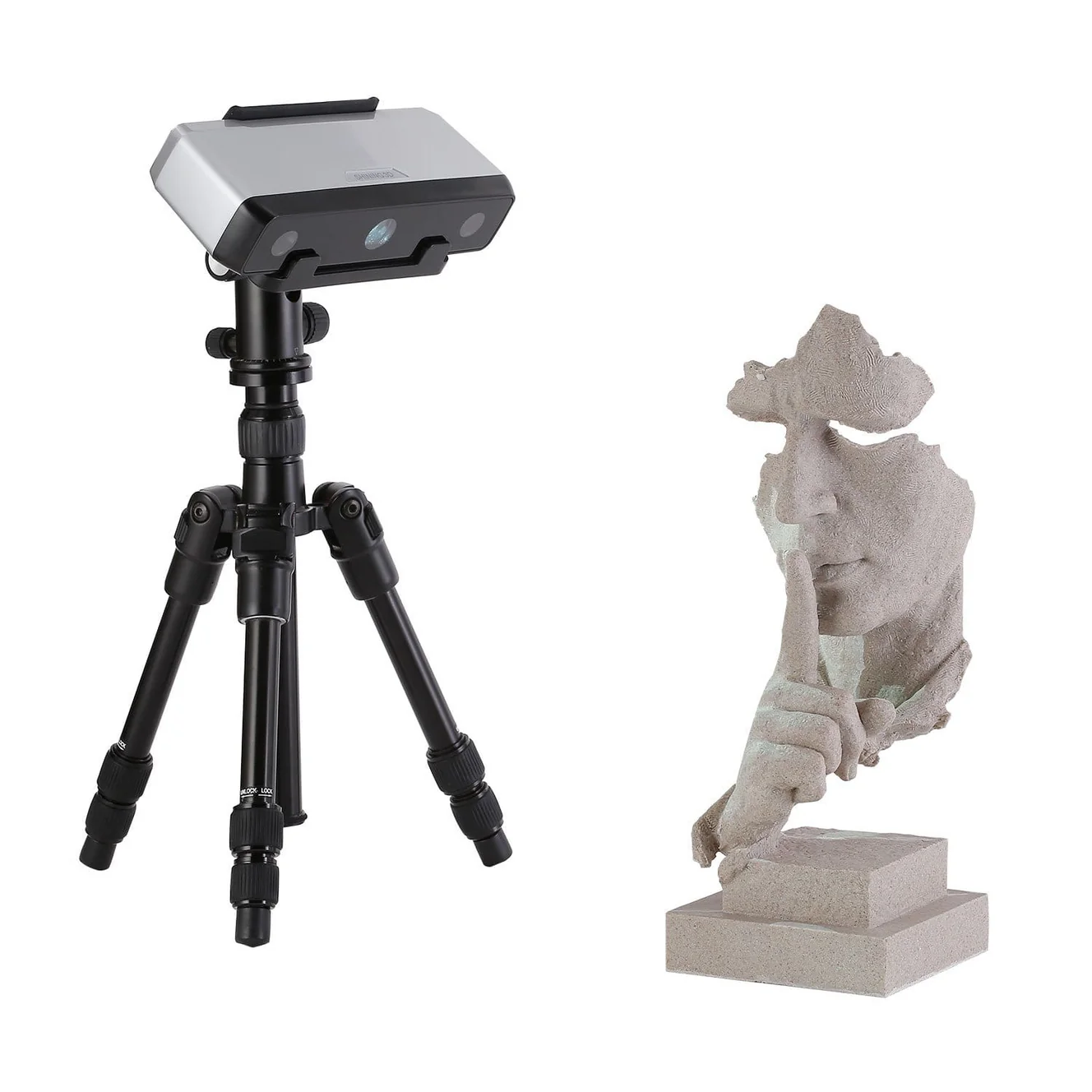

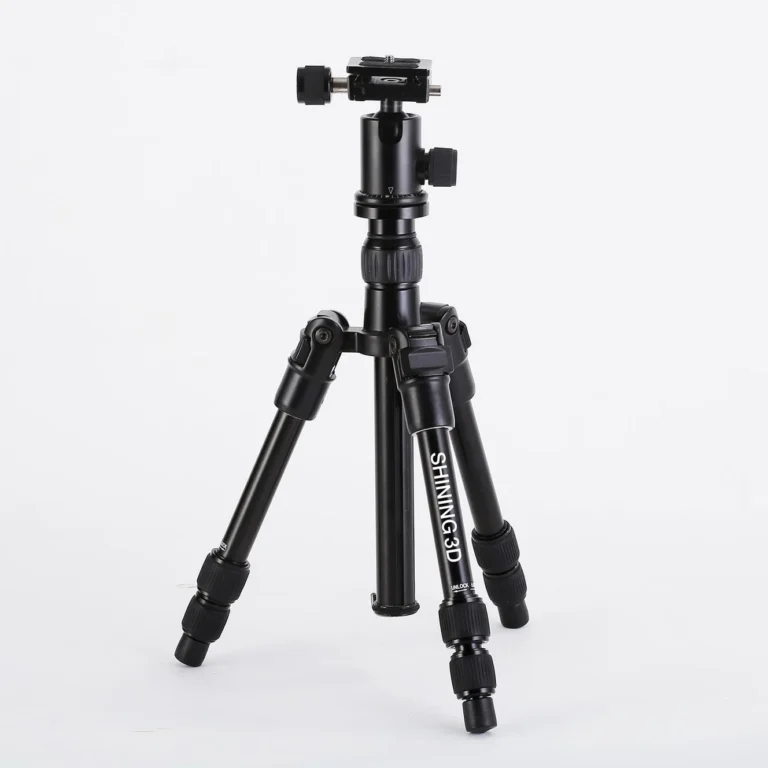

• Fixed Scan Mode (Tripod): Scanner stays stationary while you reposition the object manually — objects up to 700×700×700mm; marker, feature, turntable coded target, and manual alignment available
• Single scan speed: under 1 second — fast frame capture for building up complete models
• Both modes produce auto-meshed watertight 3D data ready for 3D printing or CAD work

HIGH ACCURACY WITH SIMPLE OPERATION

• 0.05mm single-shot accuracy — captures fine surface detail on intricate parts and objects
• 0.17mm point distance — high-density point cloud for detailed reconstruction
• One-click scanning with automatic calibration — minimal setup, works straight out of the box
• Alignment modes: Markers, Turntable Coded Targets, Feature, and Manual
• Visible white LED light source — no laser, completely eye-safe for all environments including classrooms

FULL-COLOR TEXTURE CAPTURE

• Built-in texture camera captures 24-bit full color — realistic textures directly in the scan workflow
• Color data captured automatically during Auto Scan — no separate texture session needed
• Ideal for art, heritage documentation, product visualization, animation, and graphic arts

SCAN-TO-PRINT READY — API ACCESS INCLUDED

• Auto meshing generates watertight 3D models ready for 3D printing with no post-processing required
• Open API access — integrate directly with any brand of 3D printer
• Exports OBJ, STL, ASC, PLY, 3MF — compatible with all major CAD, slicer, and design software
• Solid Edge SHINING3D Edition CAD software included — reverse engineering and design ready

SOFTWARE INCLUDED — FREE UPDATES FOR LIFE

• EXScan S (included): Professional scanning software with hole filling, mesh smoothing, sharpening, measurement tools (distance, surface area, volume), and coordinate adjustment
• Solid Edge SHINING3D Edition (included): CAD design software for reverse engineering from scan data
• Windows & macOS compatible (Mac: Apple Silicon M-series only)
• Available in 8 languages — intuitive for beginners and professionals alike
• Free software updates for life — no subscription fees

FULL TECHNICAL SPECIFICATIONS

APPLICATIONS

• Reverse Engineering: Scan small to medium parts directly to CAD — Solid Edge included, SolidWorks and Fusion 360 compatible
• 3D Printing: Scan physical objects and print copies, replacements, or modified versions — watertight mesh output ready to slice
• Manufacturing & Quality Control: Accurate dimensional capture of parts, small components, and industrial accessories
• Product Design: Rapid physical-to-digital conversion for design iteration, mold capture, and prototype documentation
• Art & Cultural Heritage: Sculptures, artifacts, figurines, and decorative objects — full-color texture capture included
• Education & Research: Entry-level professional scanning for classrooms, labs, and maker spaces — beginner-friendly one-click workflow
• Healthcare: Small prosthetics, medical implant models, anatomical part scanning
• Animation & Graphic Arts: Full-color textured scans for CGI assets, character modeling, and digital archiving

WHY BUY THROUGH RIPPERDEN RESOURCES?

• ✓ Authorized Shining 3D dealer via Vision Miner — full factory warranty and US-based support
• ✓ Local Texas-based assistance for setup, training, and troubleshooting
• ✓ We offer 3D scanning services ourselves — real expertise, not just a reseller
• ✓ Vision Miner tests every scanner they sell and provides ongoing technical resources

Note: The EinScan SP v2 is a desktop/tabletop scanner and requires a PC connection via USB. NVIDIA GPU required — AMD not supported. Mac compatible with Apple Silicon M-series only. Contact us before ordering to confirm current availability and shipping cost. Contact Ripperden Resources
