Description

SMARTER. LIGHTER. FINER. FREER.

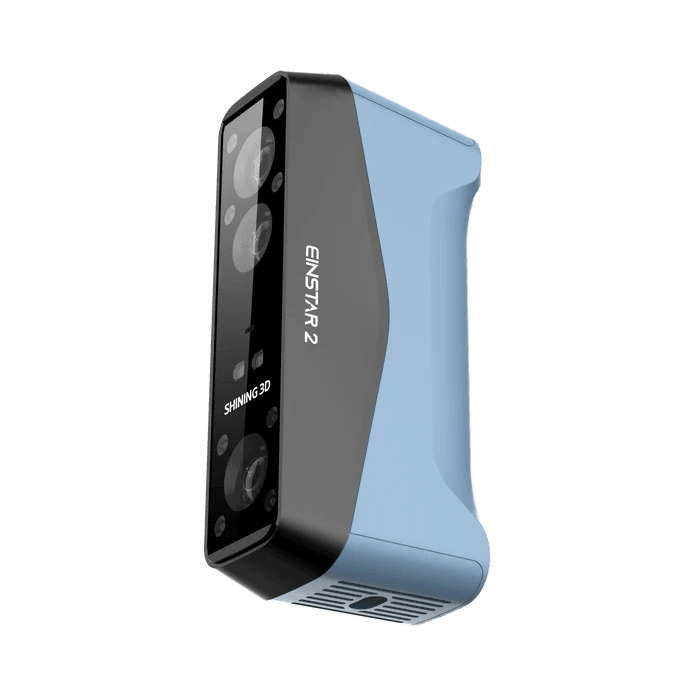

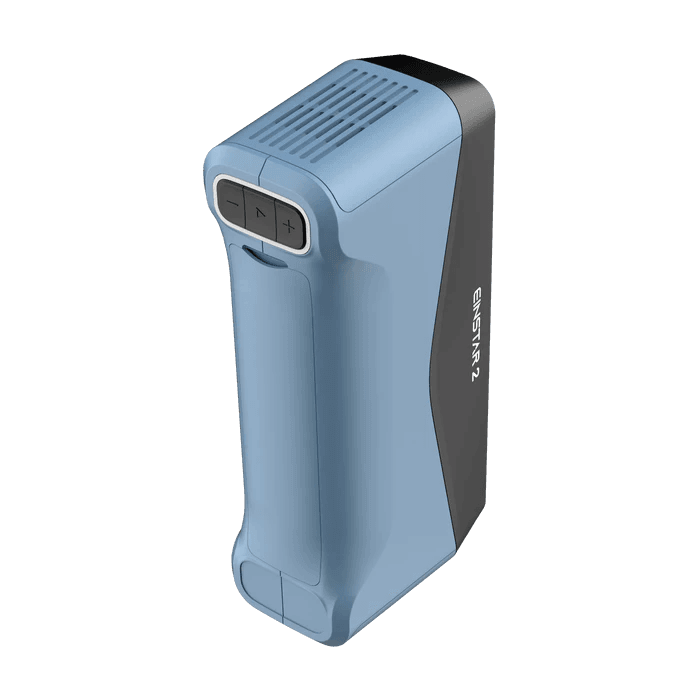

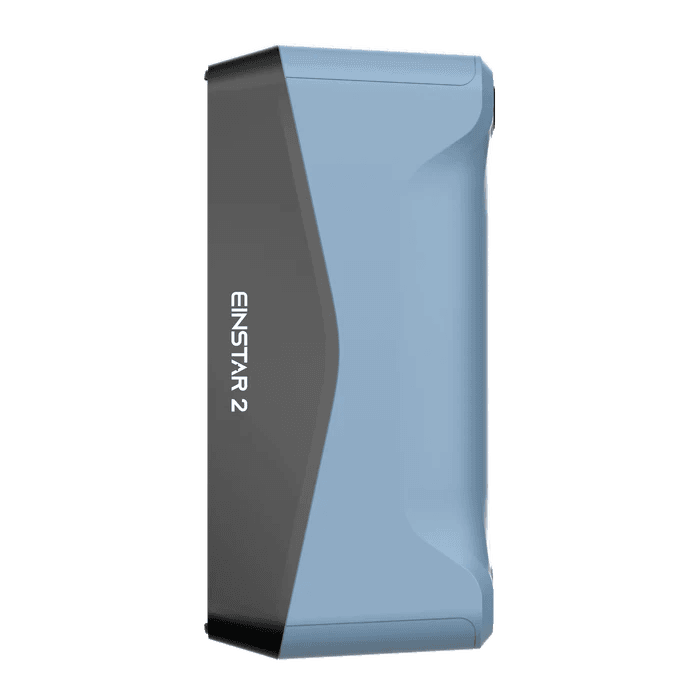

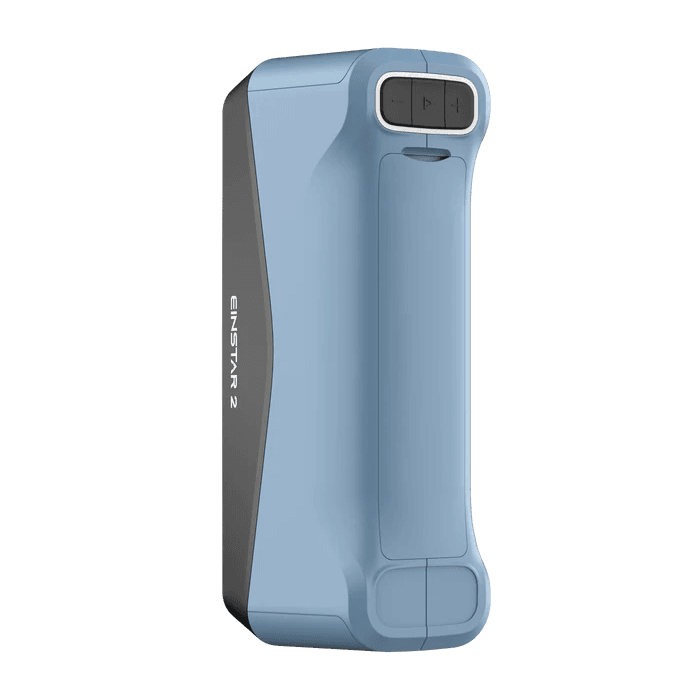

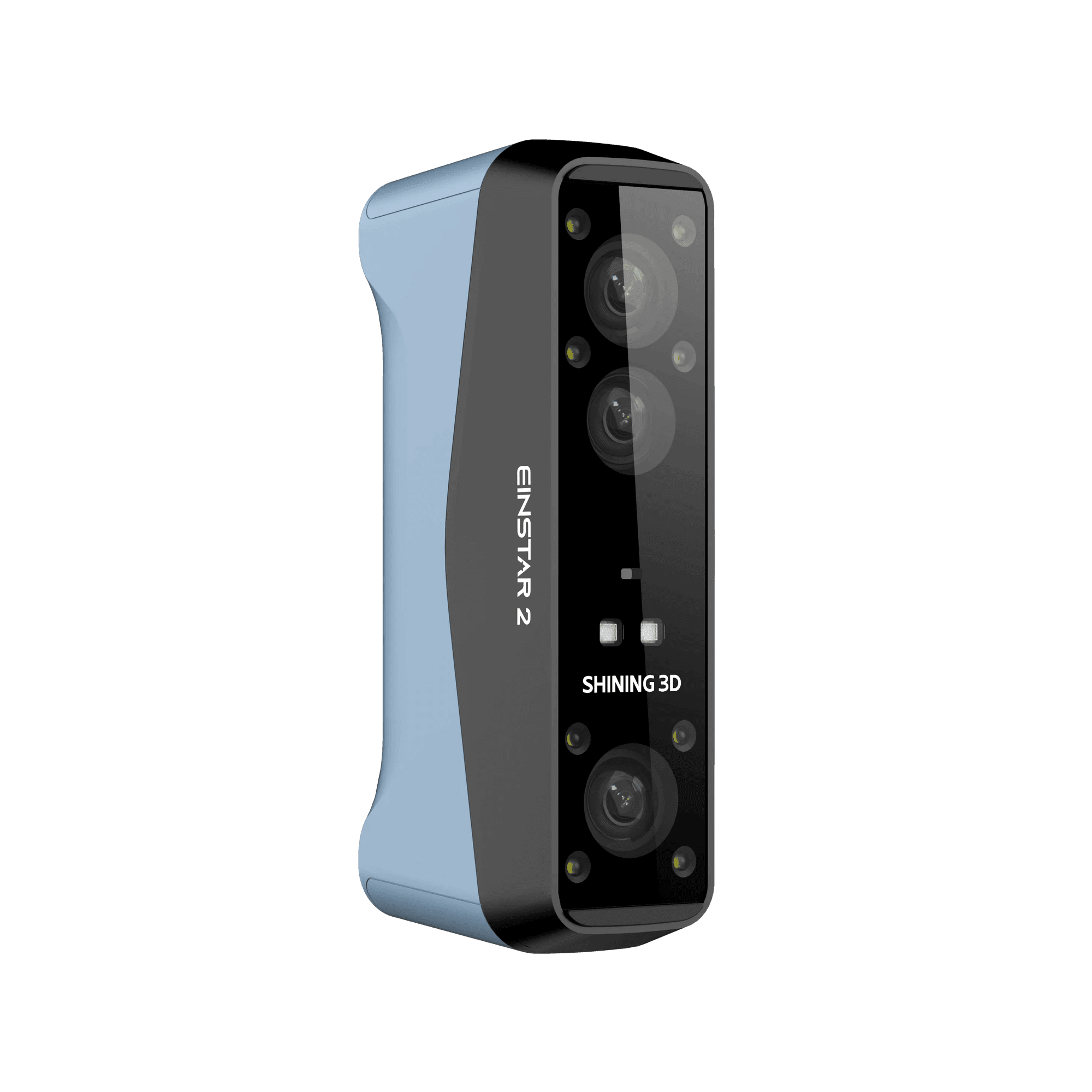

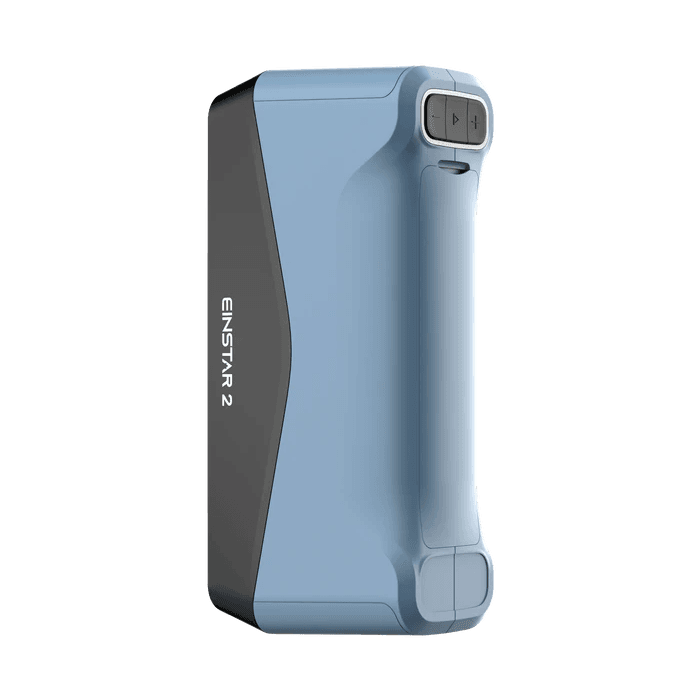

The Shining 3D Einstar 2 is the next generation of the best-selling Einstar scanner — rebuilt from the ground up with a 17-line blue laser, true wireless design, and a swappable battery that keeps you scanning for up to 3 hours. No cables. No spray. No complicated setup. Just high-quality 3D data from objects as small as 5mm up to entire vehicles, indoors or out.

As an authorized Shining 3D dealer via Vision Miner, Ripperden Resources provides local support and can assist with setup, training, and real-world scanning guidance alongside Vision Miner’s US-based team.

DUAL HYBRID SCANNING — LASER HD AND IR RAPID

The Einstar 2 combines two scanning technologies optimized for different tasks:

• Laser HD Mode (17 Parallel Blue Laser Lines): Up to 0.05mm point distance for fine detail on small to medium objects — up to 90 FPS, ideal for intricate parts, reverse engineering, and reflective surfaces
• IR Rapid Mode (VCSEL Infrared): Wide-area coverage for large objects, full bodies, and outdoor environments — up to 40 FPS, FOV up to 1170×1385mm
• Scan objects from 5mm to 10 meters in size — a keychain or an entire car interior
• Alignment modes: Global Marker, Markers, Features, Texture, Hybrid

NO SPRAY. NO CABLES. NO LIMITS.

• Scans black, reflective, and metallic surfaces directly — no scanning spray required
• True wireless via built-in Wi-Fi — no external hub or dongle needed; USB-C also available
• Swappable 5,500mAh battery — up to 3 hours continuous scanning; hot-swap for unlimited sessions
• Works outdoors: Laser HD up to 110,000 lux, IR Rapid up to 70,000 lux — bright sunlight supported
• Operating temperature: –10°C to 40°C — workshop, field, or outdoor environments

FULL-COLOR TEXTURE CAPTURE

• 2.3MP texture camera captures vivid full-color scans in both laser and infrared modes
• Color data directly integrated into scan workflow — no separate texture mapping session
• Ideal for art, heritage, product visualization, body scanning, and CGI/VR assets

SOFTWARE INCLUDED — SCAN TO PRINT WORKFLOW

• EXStar Hub (PC software): Unified scanning interface with fast processing, multi-scan merging, mesh editing — Windows & Mac compatible
• EXModel Personal (included): One-click scan-to-CAD bridge — mesh repair, hole filling, watertight mesh generation for 3D printing
• SHINING3D Cloud platform: Online viewing, measuring, and sharing of scan data
• Exports STL, OBJ, PLY, 3MF, ASC — compatible with all major CAD and slicer software
• Auto base-plane removal, hole filling, and outlier removal built in

FULL TECHNICAL SPECIFICATIONS

APPLICATIONS

• 3D Printing: Scan objects and print replacements, modifications, or custom designs — scan to print in minutes
• Reverse Engineering: Capture parts directly for CAD modeling — SolidWorks, Fusion 360, macOS compatible
• Automotive: Body panels, engine bays, interior cabins, custom fabrication — scan outdoors in direct sunlight
• Art, Design & Heritage: Sculptures, cultural artifacts, props, full-color digital archiving
• Body & Medical: Full-body scanning, prosthetics, orthotics, limb capture in IR mode
• Product Design: Rapid shape capture, design reference, prototype iteration
• R&D & Education: Research, STEM projects, classroom demonstrations — beginner-friendly workflow

WHY BUY THROUGH RIPPERDEN RESOURCES?

• ✓ Authorized Shining 3D dealer via Vision Miner — full factory warranty and US-based support
• ✓ Local Texas-based assistance for setup, training, and troubleshooting
• ✓ We offer 3D scanning services ourselves — real expertise, not just a reseller
• ✓ Vision Miner tests every scanner they sell and provides ongoing technical resources

Note: Contact us before ordering to confirm current availability, shipping cost, and pricing. Contact Ripperden Resources
