Description

ROCK-IT IN YOUR POCKET. MARKER-FREE. WIRELESS. PROFESSIONAL.

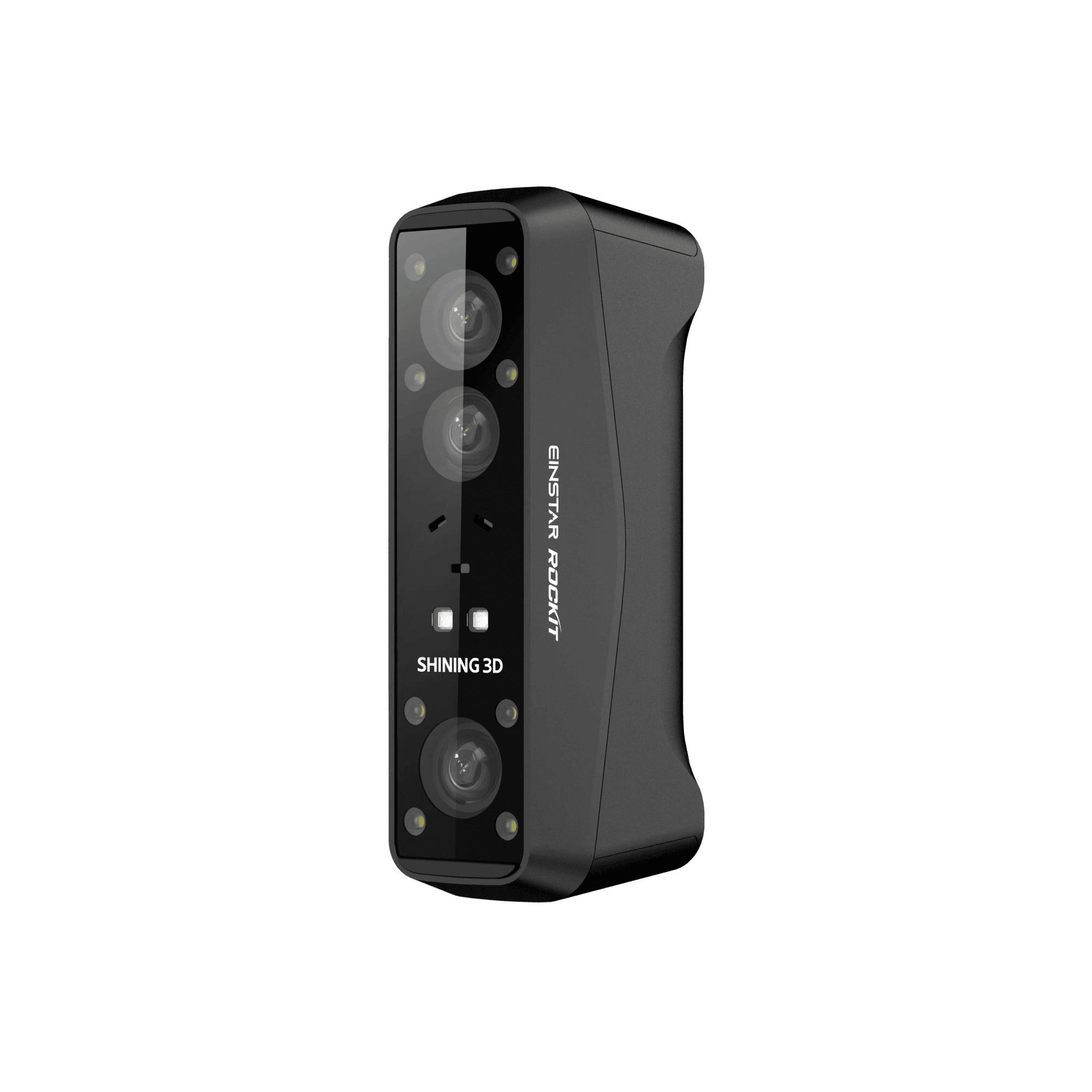

The Shining 3D Einstar Rockit is the step up from the Einstar 2 for users who need maximum speed and minimum prep work. Its defining advantage: marker-free laser scanning — scan any feature-rich object without placing, aligning, or removing tracking markers. Combined with a 19+19 crossed laser configuration, 5MP color camera, and true wireless dual-battery design, the Rockit is built for professionals who move fast and can’t afford workflow interruptions.

As an authorized Shining 3D dealer via Vision Miner, Ripperden Resources provides local support and can assist with setup, training, and real-world scanning guidance alongside Vision Miner’s US-based team.

MARKER-FREE LASER SCANNING — THE DEFINING UPGRADE

The Rockit’s standout feature over the Einstar 2 is its ability to scan without markers in laser mode:

• Marker-free scanning in both crossed and parallel laser modes — feature recognition handles alignment automatically
• Eliminates the time-consuming workflow of placing, scanning, and removing dozens of tracking markers
• Marker-based alignment also supported for objects with minimal surface features
• IR Rapid mode supports full Hybrid alignment: Features, Texture, and Markers
• Result: faster setup, cleaner workflow, and lower barrier to professional-quality scans

DUAL HYBRID SCANNING — CROSSED LASER AND IR RAPID

• 19+19 Crossed Blue Laser Lines: Rapid wide-area capture — working distance 100–600mm, FOV 545×620mm, up to 2.8M pts/sec
• 7 Parallel Blue Laser Lines: Fine detail mode for complex geometry and tight features — working distance 100–400mm, FOV 355×425mm
• IR Rapid Mode (VCSEL): High-speed coverage for large objects — up to 4.8M pts/sec, FOV 1170×1385mm
• Scan objects from 5mm to 10 meters — a screw to a full vehicle interior
• 0.05mm minimum resolution in Laser HD mode — sharp edges and fine surface detail captured cleanly

NO SPRAY. NO CABLES. NO MARKERS.

• Scans black, reflective, carbon fiber, glossy paint, and chrome directly — no scanning spray needed
• True wireless via built-in Wi-Fi — no hubs, no adapters, no dongles; USB-C also available
• Dual swappable batteries — up to 3 hours each; use one while charging the spare for unlimited sessions
• Works outdoors: Laser HD up to 110,000 lux, IR Rapid up to 70,000 lux — direct sunlight supported
• Operating temperature: –10°C to 40°C — workshop, field, and outdoor environments

5MP FULL-COLOR TEXTURE CAPTURE

• Dedicated 5MP color camera — a full step up from the 2.3MP camera in the Einstar 2
• Advanced texture mapping algorithm preserves full 5MP resolution in the final 3D model
• Photorealistic color capture for automotive, art, heritage, AR/VR, and product visualization
• Color data captured simultaneously with geometry — no separate texture session required

SOFTWARE INCLUDED — SCAN TO DESIGN WORKFLOW

• EXStar Hub (PC software): Unified scanning interface — real-time mesh preview, multi-scan alignment, noise removal, export; Windows & Mac compatible
• EXModel Personal (included): One-click scan-to-CAD transfer — mesh repair, hole filling, watertight mesh for 3D printing and reverse engineering
• SHINING3D Cloud platform: Online viewing, measuring, and sharing of scan data
• Exports STL, OBJ, PLY, 3MF, ASC — compatible with SolidWorks, Fusion 360, and all major CAD tools
• Note: marker-free laser scanning in smooth workflow requires 64GB RAM recommended

FULL TECHNICAL SPECIFICATIONS

ROCKIT VS EINSTAR 2 — WHICH IS RIGHT FOR YOU?

• Choose the Einstar 2 ($1,199) if: you’re new to 3D scanning, primarily scan small-to-medium objects, and don’t mind placing markers
• Choose the Rockit ($1,799) if: you need marker-free workflow, scan automotive or large parts frequently, want a 5MP camera, and need faster scan speeds
• For even more capability: the EinScan Rigil ($4,999) adds a fully wireless standalone device with onboard screen, higher accuracy, and tri-mode scanning

APPLICATIONS

• Automotive: Body kits, interior trim, engine bays — scan on-site without markers or cables
• Reverse Engineering: Scan parts directly to CAD — SolidWorks, Fusion 360, and macOS compatible
• 3D Printing: Capture and reproduce complex parts, custom components, and replacement hardware
• Art, Design & Heritage: Sculptures, outdoor monuments, cultural artifacts — scan anywhere in full color
• AR/VR Content: High-fidelity 5MP textured models ready for immersive experiences
• Product Design: Rapid shape capture, design validation, prototype iteration
• Industrial Manufacturing: Jigs, fixtures, tooling inspection, small-to-medium part measurement

WHY BUY THROUGH RIPPERDEN RESOURCES?

• ✓ Authorized Shining 3D dealer via Vision Miner — full factory warranty and US-based support
• ✓ Local Texas-based assistance for setup, training, and troubleshooting
• ✓ We offer 3D scanning services ourselves — real expertise, not just a reseller
• ✓ Vision Miner tests every scanner they sell and provides ongoing technical resources

Note: Contact us before ordering to confirm current availability, shipping cost, and pricing. Contact Ripperden Resources
