Description

WIRELESS 3D SCANNING. ANYWHERE. NO PC REQUIRED.

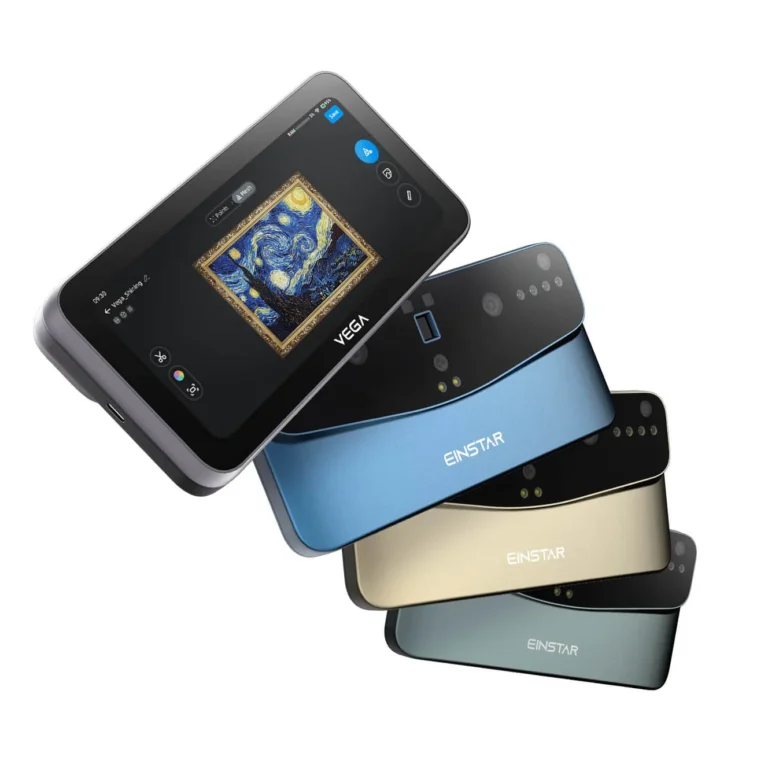

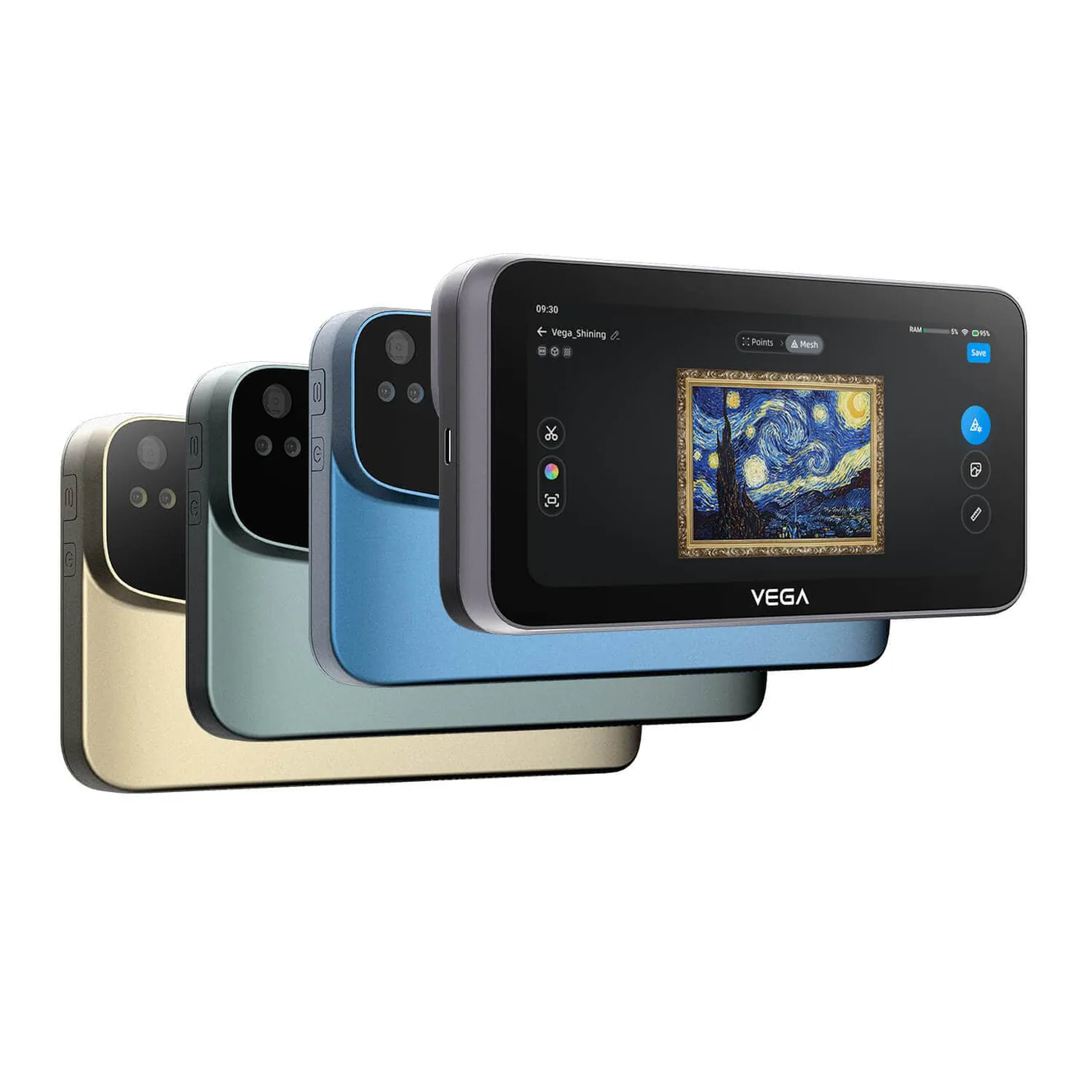

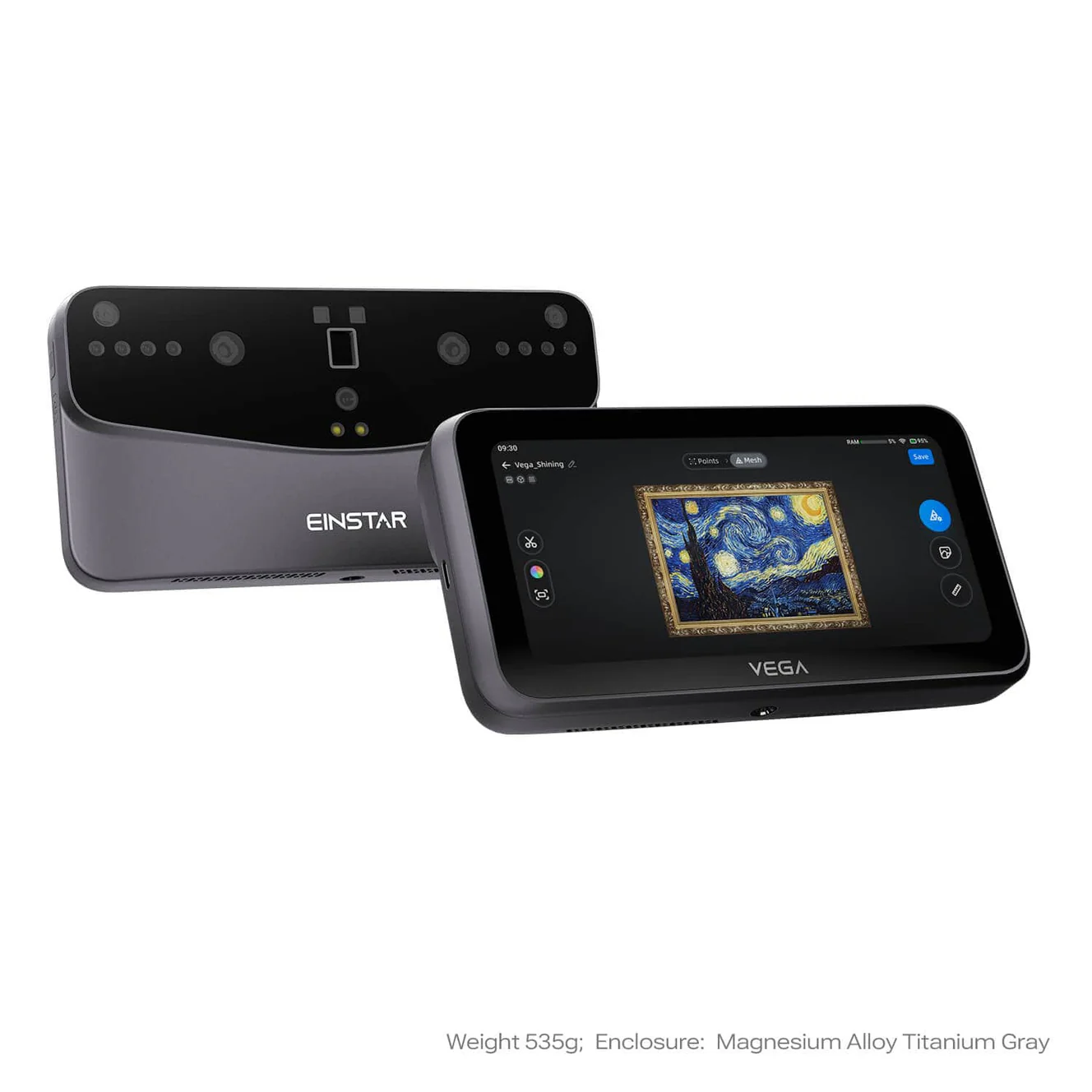

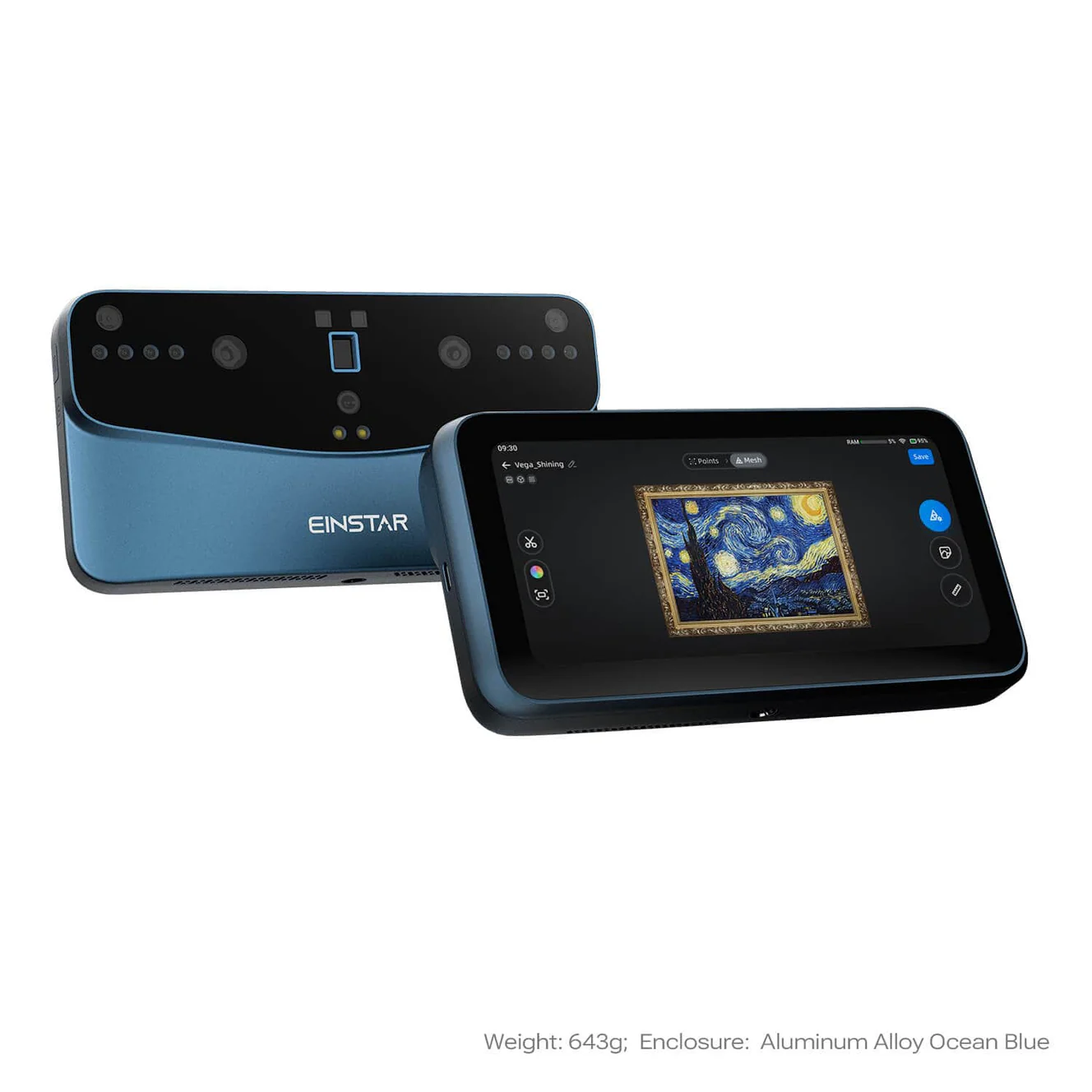

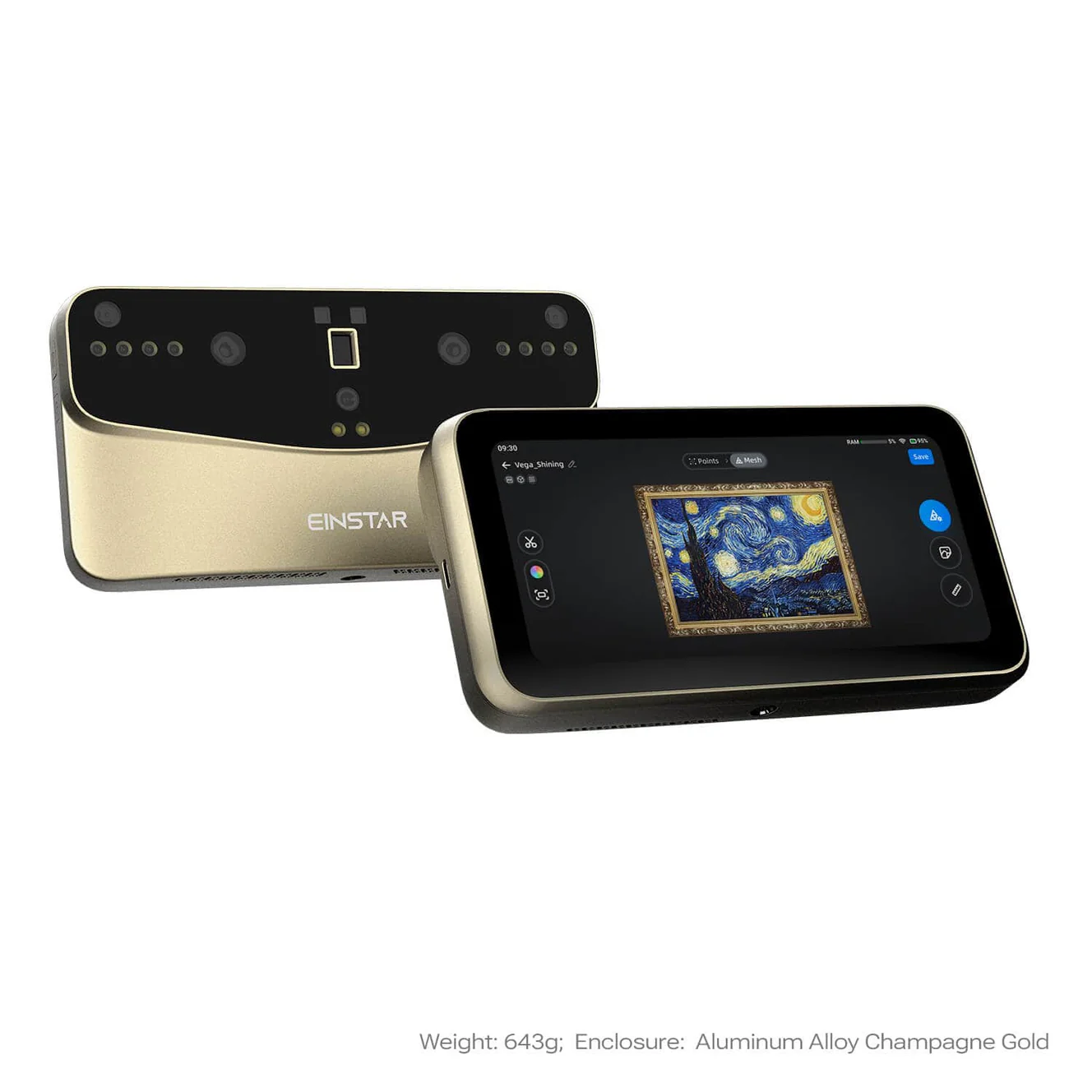

The Shining 3D Einstar Vega is a pocket-sized, wireless all-in-one 3D scanner that lets you scan, process, edit, and export 3D models entirely on the device — no laptop, no cables, no limits. With dual scanning technologies, a 48MP color camera, and a 6.4″ 2K AMOLED touchscreen, the Vega delivers professional-grade scanning in a device that weighs just 535g and fits in your hand.

As an authorized Shining 3D dealer via Vision Miner, Ripperden Resources provides local support and can assist with setup, training, and real-world scanning guidance alongside Vision Miner’s US-based team.

DUAL SCANNING MODES — HD DETAIL AND FAST COVERAGE

The Vega combines two distinct scanning technologies optimized for different tasks:

• HD Mode (MEMS Infrared): Up to 0.05mm resolution for small objects, fine details, complex textures — working distance 100–350mm, up to 15 FPS
• Fast Mode (VCSEL Infrared): Wide-area scanning for large objects, people, and outdoor environments — working distance 270–1500mm, up to 20 FPS
• Switch between modes for the same project — capture fine detail and full coverage in one scan session
• Alignment modes: Feature, Texture, Markers, and Hybrid — handles almost any object type

SCAN ANYWHERE — INDOORS, OUTDOORS, DAY OR NIGHT

• VCSEL projector works in direct sunlight up to 100,000 lux — no shade needed
• Real-time white balance and built-in fill lights — accurate color capture even at night
• Scans dark, reflective, and complex surfaces without scanning spray
• Operating temperature: –10°C to 40°C — workshop, field, or outdoor use

FULLY WIRELESS — ALL-IN-ONE STANDALONE DEVICE

• Built-in 8-core 2.4GHz CPU, 32GB LPDDR4 RAM, 32GB eMMC + 512GB SSD
• 6.4″ 2K AMOLED touchscreen — calibrate, scan, edit, and export on the device
• Wi-Fi 6 and USB Type-C connectivity — wireless cloud sharing or wired PC transfer
• 5,000mAh battery — 1.5 to 2 hours of scanning; power bank compatible for extended use
• 65W fast charging (PD/PPS) via USB-C
• 5GB free SHINING3D Cloud storage included — scan, save, and share from anywhere

48MP FULL-COLOR TEXTURE CAPTURE

• 48 megapixel color camera delivers lifelike, photorealistic textures
• Full-color capture in both HD and Fast modes
• Ideal for art, design, cultural heritage, body scanning, and product visualization
• 4 stereo depth cameras + 2 VCSEL infrared sensors for comprehensive data capture

SOFTWARE INCLUDED — SCAN ON DEVICE OR PC

• On-device workflow: One-click scan, mesh, edit, and export directly on the Vega — no computer needed
• StarVision (PC software): Advanced post-processing, multi-scan merging, mesh editing — compatible with Windows 10/11 (64-bit) and macOS
• SHINING3D Digital Cloud: View, measure, and share scans online; wireless upload from device
• Exports PLY, STL, OBJ, ASC — compatible with all major CAD and design software
• Auto base-plane detection and removal, auto hole filling, resume scanning after editing

FULL TECHNICAL SPECIFICATIONS

WHAT’S IN THE BOX

• 1x Einstar Vega 3D Scanner
• 1x Glass calibration board + plastic holder
• 1x 100W USB-C power adapter
• 1x USB-C cable
• 1x Metal tripod
• 1x Silicone scanner case
• 1x Wrist strap
• Scanning markers
• Carrying case
• StarVision PC software + SHINING3D Cloud access

APPLICATIONS

• Reverse Engineering: Scan parts and components directly to CAD — SolidWorks, Fusion 360, macOS compatible
• Automotive: Body panels, custom parts, aftermarket modification — scan cars outdoors in direct sunlight
• Body & Medical: Full-body scanning, prosthetics, orthotics, face and limb capture
• Art, Design & Heritage: Sculptures, cultural artifacts, props, full-color digital archiving
• Product Design: Rapid prototyping, shape capture, design reference models
• R&D & Education: Research, classroom demonstrations, STEM projects
• 3D Printing: Scan real objects to print — replacement parts, custom designs, figurines

WHY BUY THROUGH RIPPERDEN RESOURCES?

• ✓ Authorized Shining 3D dealer via Vision Miner — full factory warranty and US-based support
• ✓ Local Texas-based assistance for setup, training, and troubleshooting
• ✓ We offer 3D scanning services ourselves — real expertise, not just a reseller
• ✓ Vision Miner tests every scanner they sell and provides ongoing technical resources

Note: Contact us before ordering to confirm current availability, shipping cost, and pricing. Contact Ripperden Resources
