Level Wall Mount

$28.00$29.00 (Includes Free Shipping)

Free shipping on all orders!

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • Apple Pay

Description

This is a wall mount for a level.  I needed a wall mount for my level and I also had a customer request to design one, so I designed this.

Here is a short video with audio describing usage here.

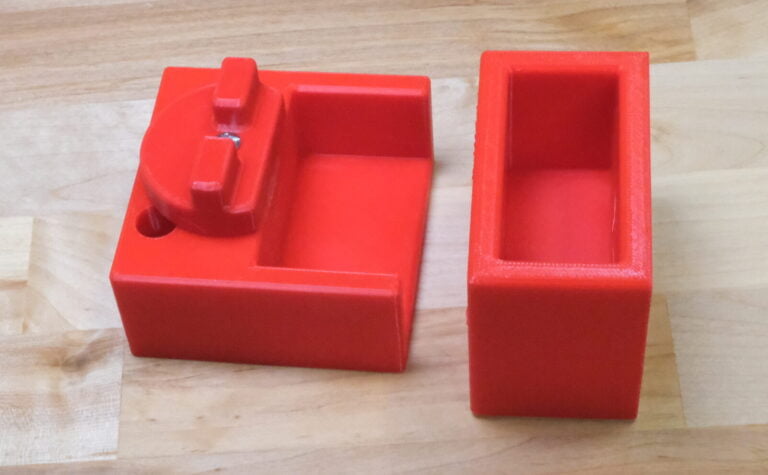

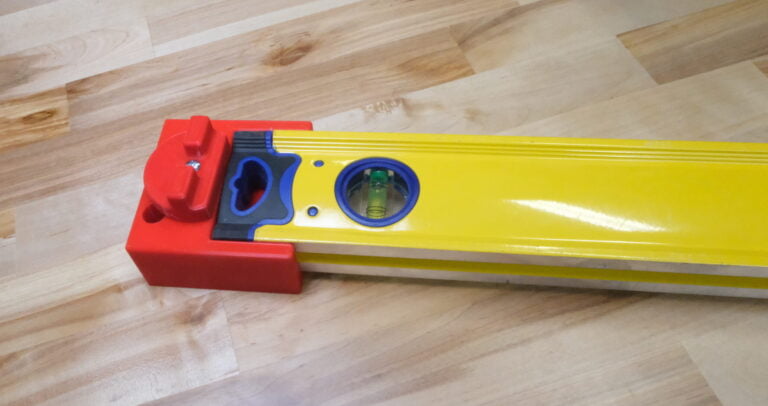

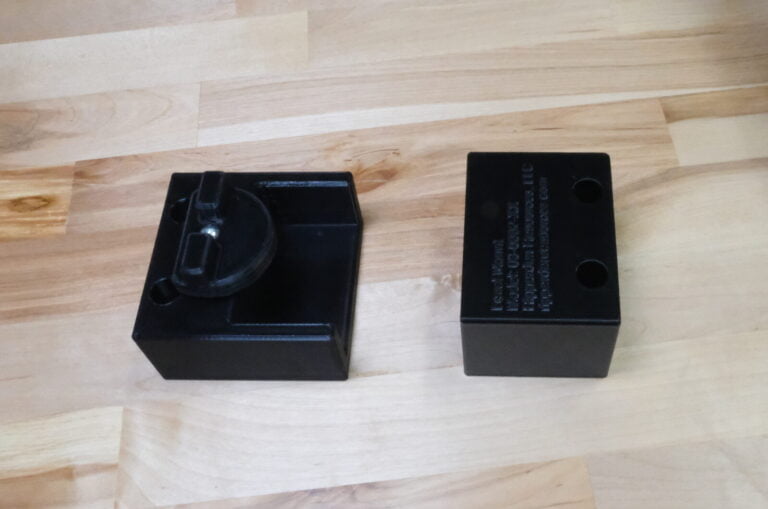

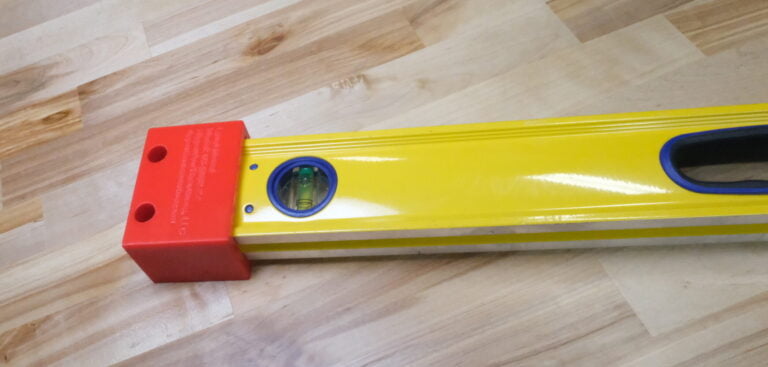

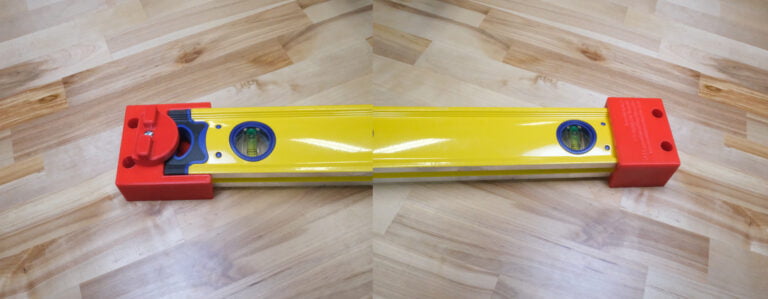

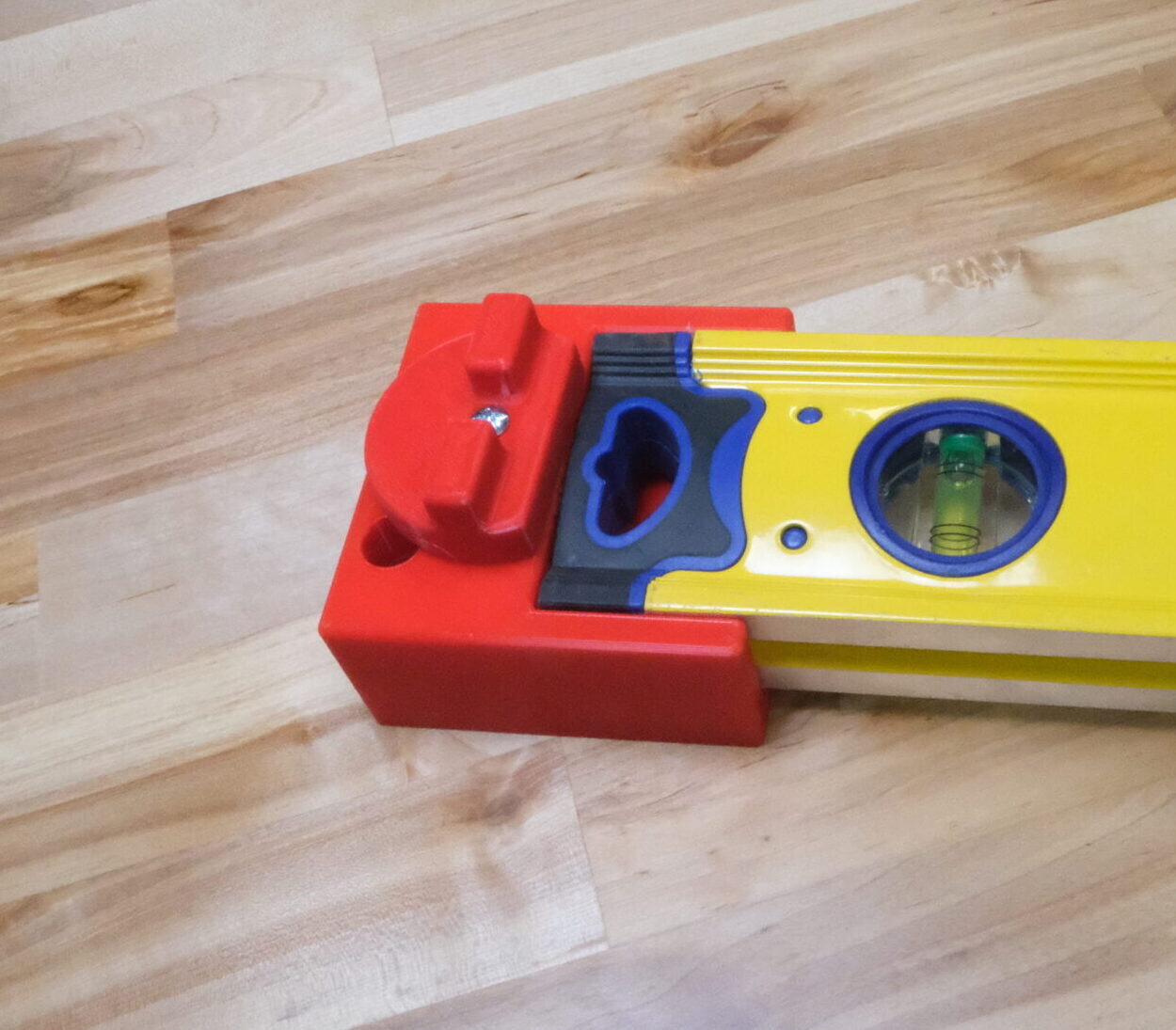

This mount is designed to be robust and has a higher than normal infill percentage, especially around the fastener holes.  The level can be mounted vertically or horizontally.  The mount consists of two mounting blocks.  One is closed on one end and the level slides into it.  The other block has a knob to lock the level in place or when unlocked, allows the level to be removed.  Magnets are used to keep the knob from moving when in the locked/unlocked position.  You may not feel the magnets at first, as the friction fit of the knob on the shaft is stronger.  As the knob movement breaks in, you will feel the magnets hold the knob in the locked/unlocked position.

Level and fasteners not included.

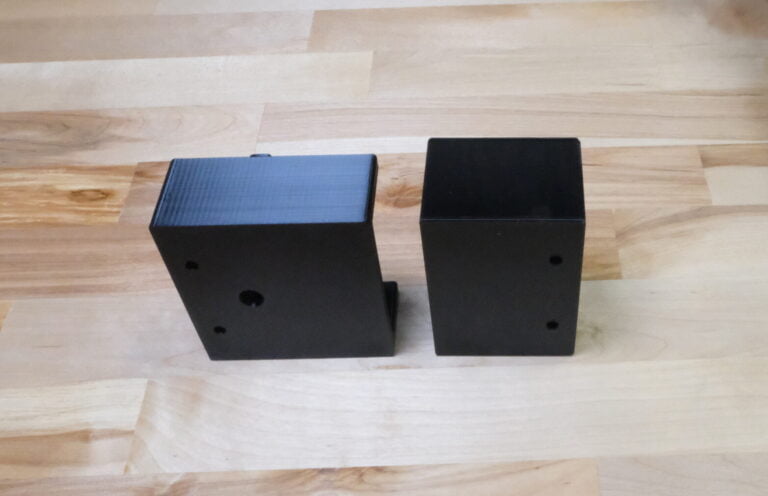

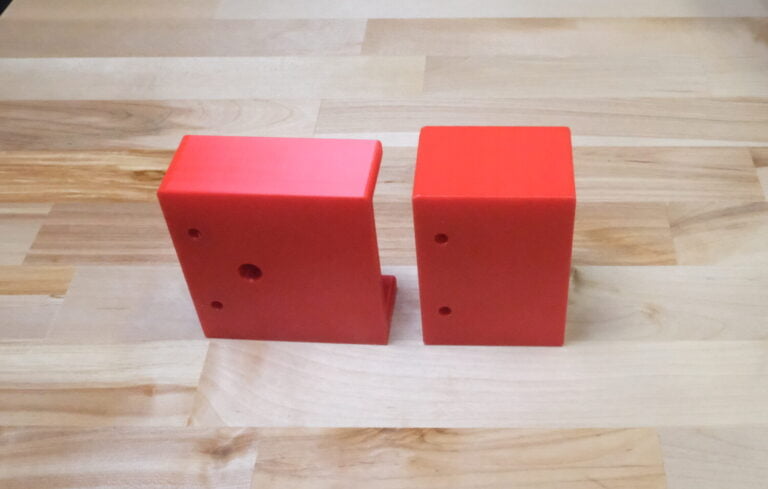

Two mounting holes allow for up to a #10 (5 mm) fastener for securing each mount to a wall.  The fastener head size diameter is a little larger than 3/8″ (0.472″, 12 mm), so it can fit most fasteners up to a #10 (5 mm).

If your level is a different size, c ontact us and let us know what the size is and we will add it to the list.  Please be accurate with the measurements you provide as we allow for about a 1/10″ clearance around the level so the level doesn’t bounce around too much.

If you want a different color or you would like it printed out with a different material, contact us and we can check to see if we can source the color/material you want.

This is a 3D printed product. Layer lines and small artifacts may be visible, but does not affect the functionality of the product in any way.

Additional information

Level Size

1" x 2 1/4", 1 1/8 x 2 1/2"

Color

Black, Red
